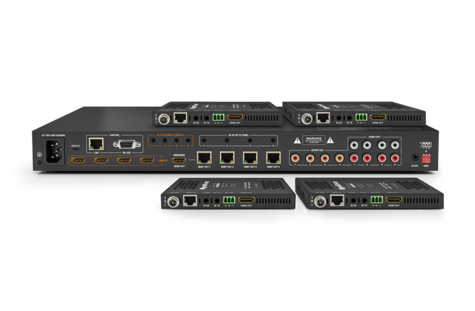

WyreStorm MXV 4K HDR 4:4:4 60Hz HDBaseT 4x4 Matrix Switch with 4x Receivers & Audio De-Embed (35m)

2160p 4:4:4 60 - HDMI MAXED OUT

Bringing our lossless compression technology from our flagship H2XC matrix platform to the other end of the range, the MXV-0404-H2A can handle both current & future video content technologies up to 4K/60 4:4:4 and high framerate HDR. The highest possible bandwidth that currently exists according to the HDMI 2.0 specification can still be sent over HDBaseT using the latest in lossless compression technology.

DE-EMBEDDING AUDIO

With audio functionality to match its video capability, the MXV 4x4 has the ability to extract audio signals from either source devices or from the HDBaseT™ output, following the zone. Having S/PDIF and analogue connectivity means having the flexibility to use multi-channel 5.1 or stereo audio signals.

MIRRORED HDMI OUTPUT

In addition to the audio breakout ports, the H2A-KIT also features a single HDMI output port which can be used to connect an AVR for zone 1 or - via a WyreStorm H2 extender or hybrid optical cable - send a mirrored 18Gbps HDMI signal to a 5th screen.

CEC TRIGGERING

Working automatically or triggered via the API, the MXV-0404-H2A can send power commands to all connected screens or projectors compatible with CEC meaning an integrated autonomous control solution.

FEATURES

• 4x4 HDBaseT 4K matrix switcher supporting:
• Content up to 4K/60 4:4:4 & RGB 8-bit
• The latest HDR standards, including HDR-10, HLG and Dolby Vision™
• HDCP 2.2 encryption technology ensuring compatibility with the latest 4K UHD content and sources
• HD Multichannel audio up to DTS:X and Dolby Atmos™ to all outputs
• HDMI Inputs HDBaseT™ outputs and mirrored HDMI port supports bandwidths of up to 18Gbps
• Capable of transmitting content to 35m/115ft over Cat6 cable or 1080p/60Hz to 70m/230ft over HDBaseT using light compression
• Automatic (signal sensing) or manual (API operated) CEC power triggering of all connected screens or projectors (CEC compatibility required)
• Assignable audio outputs allow audio to be de-embedded from sources or HDBaseT output via mirrored stereo RCA and S/PDIF ports
• A/V Mute mode allows the routing of a signal to an output to be deactivated
• API controlled standby mode allows the matrix to enter a low power state when not in use, cutting power consumption by up to 34%
• Mirrored HDMI output allows connection of a local AVR, local screen or additional display over distance via an HDBaseT extender or hybrid optical HDMI cable
• API triggered A/V mute allows a signal to be deactivated to any zone
• 4x PoH receivers included – a complete kit for quicker, easier and more reliable installation and AV distribution straight out of the box
• HDBaseT technology handles video, audio, bidirectional IR and PoH to display zones along a single Cat6 cable
• Can be combined with WyreStorm EXP-CON-DAC-D digital audio converter to downmix Dolby Digital 5.1 content to mix stereo and surround sound zones
• SmartEDID™ removes conflict when mixing 1080p & 4K displays by dynamically detecting display/source capabilities and automatically requesting the highest possible resolution for all displays
• Additional EDID management through DIP switches for global setting or via WebUI for independent management of EDID per source
• Flexible control options – front panel buttons, infrared remote control, local IR, RS-232, Telnet or WebUI
• Central RS-232 control compatible major third party control systems with full integration protocols available for Crestron, AMX, RTI & Control4
• Embedded WebUI allows installer setup and configuration and provides switching interface
• Simple switching matrix remote control included, which can also be learned into a universal remote handset to allow the control of multiple devices from one handset
• IR 3.5mm mini-jack ports for each output for IR emitters and IR receivers
• Compact 1U chassis with adjustable depth rack mounting brackets included

ADDITIONAL FEATURES ON RECEIVERS

• Low profile chassis for quick, easy and flush installations
• Multichannel audio supports 7.1 DTS:X and Dolby Atmos
• Additional power connectivity via threaded bushings for both standard and locking DC power plugs
• LED indication for visual power supply to receiver via PoH or mains, signal status to show established connection to display, HDBaseT link to matrix and HDCP confirmation to illustrate the presence of encryption within a signal
