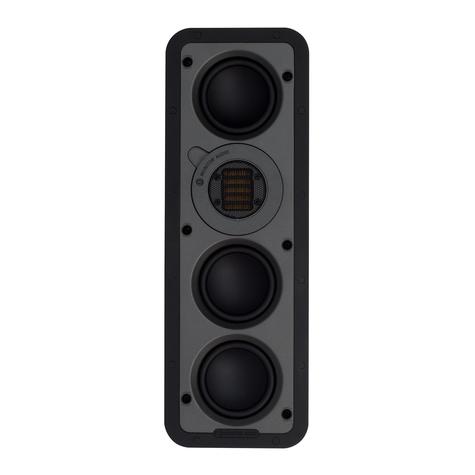

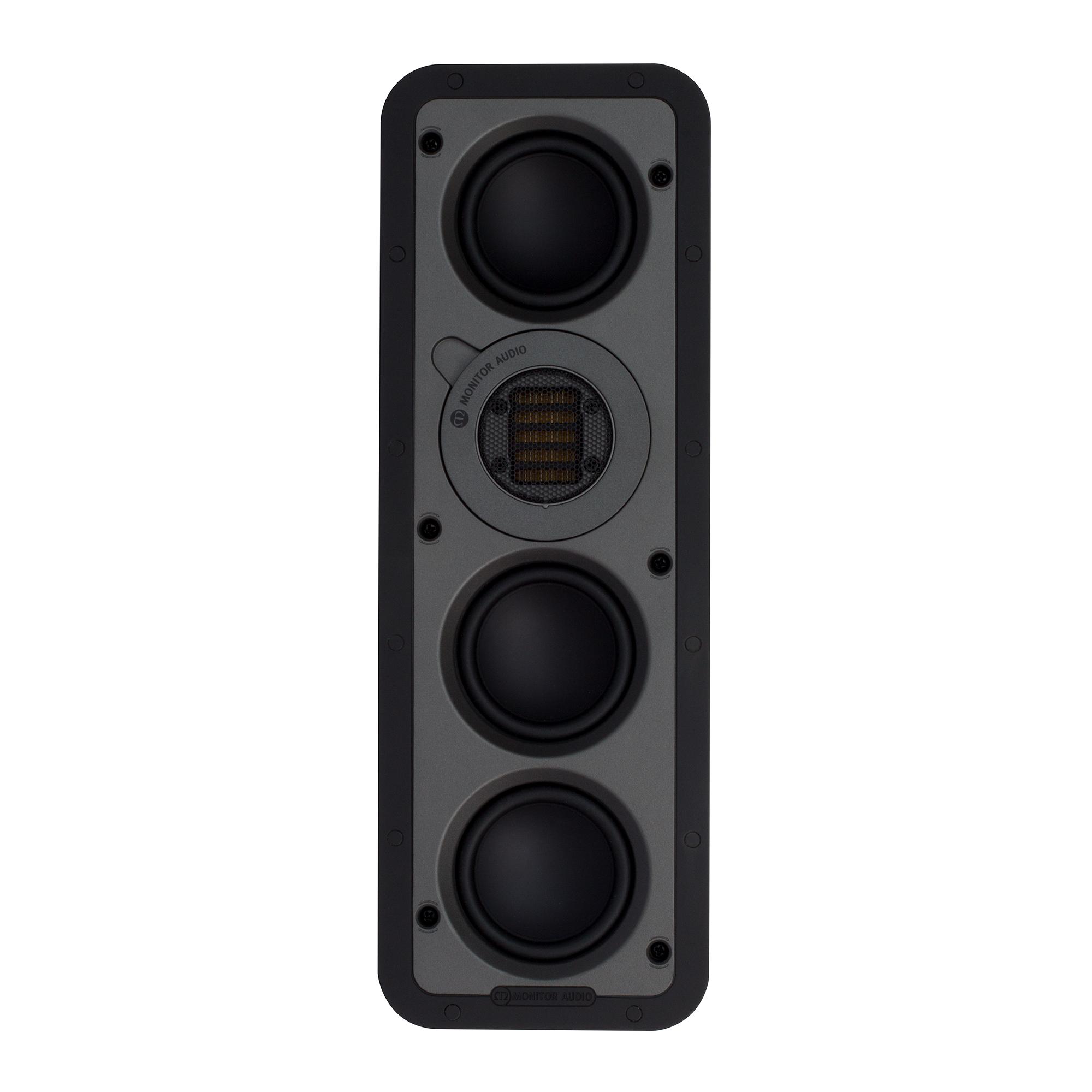

WSS430 Super Slim In-Wall
The WSS430 flagship maintains its siblings' shallow depth – all three feature identical footprints – and offers supreme audio performance, drawing on design principles, and materials, from Monitor's Audio's high-end Platinum II speakers.
The WSS430 range topper employs dished C-CAM cones to ensure ultimate diaphragm rigidity – the main aim here is to reduce distortion. High strength Neo magnets and larger voice coils provide incredible driving force, low magnetic leakage, and slim profile. The magnetic system provides an ‘under-hung' motor arrangement, ensuring the coil stays in the gap, reducing distortion further and increasing power handling.
Still just 50 mm deep, there is a lot going on with the WSS430. The MPD high frequency transducer technology – also from Monitor Audio's flagship Platinum II designs – ensures incredibly low distortion, delivering clear high frequency to over 50 kHz. Remove the model's magnetic front trim and you can rotate the tweeter to provide the optimum dispersion when using the model in landscape orientation.
Our Super Slim in-wall range flagship, the WSS430 effortlessly delivers the most critical audiophile and cinema experiences. Using design principles and technology from our flagship Platinum II speaker models, performance from this formidable in-wall challenges that from the best high-end, box speaker designs.
Tech Spec:
Frequency Response (-6 dB) 75 Hz - 50 kHz
Sensitivity (1W@1M) 87 dB
Nominal Impedance 8 ohms
Maximum SPL 106.5 dBA
Power Handling (RMS) 75 W - Full range (120 W with crossover set to 100 Hz @ 12 dB/Octave)
Recommended Amplifier Requirements 10 - 120 W
Drive Unit Complement 3 x 3" dished C-CAM cone bass-mid drivers
1 x MPD High frequency transducer - rotatable for portrait or landscape application
Crossover Recommendation using AVR/Processor 100 Hz at a minimum of 12 dB/Octave (24 dB/Octave optimum)
Overall Dimensions 385 x 140.5 mm (15 x 5 1/2")
Overall Diameter (Including Grille) 54.25 mm (2 1/8")
Cut-Out Dimensions 346 x 101 mm (13 1/2 x 4")
Mounting Depth 50 mm (2")
Connection Gold Plated Sprung push terminals - For bare wire connection up to 3 mm2
Fixing Type 6 position Tri-Grip dog leg fixings
Construction Material Mineral filled ABS Plastic, RoHS2 Compliant. Painted steel grille
Weight 1.1 kg (2 lb 6 oz)
Pre-Construction Bracket WB3 Pre-Construction Bracket (Dark Blue)
