EAP225-Wall Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point

The TP-Link EAP235-Wall Omada Wall-Plate WiFi 5 PoE Access Point has a thin wall plate design at 15mm thick. It features simultaneous dual-band Multi-User MIMO (MU-MIMO), as well as 802.3af/802.3at PoE compatibility. Its low impact design means the EAP235-Wall can seamlessly blend in with any environment. This access point is ideal for room-to-room connections, such as in hotel rooms or university dormitories.

Key Features

• Fast Dual-Band WiFi
  Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps WiFi speeds with MU-MIMO.
• Gigabit Ports
  Four (4) Gigabit Ethernet ports (1 x uplink + 3 x downlink), with one of the downlink ports supporting PoE pass-through to provide power for a wired device.
• Integrated into Omada
  Zero-Touch Provisioning (ZTP), Centralised Cloud Management, and Intelligent Monitoring.
• Centralised Management
  Cloud access and Omada app for ultra convenience and easy management.
• Elegant Appearance
  Ultra-slim and inconspicuous design blends into hotel rooms, hospitals, offices, dormitories and any other environments.
• Easy Installation and PoE Support
  Easy-mount construction, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support.
• Secure Guest Network
  Multiple authentication options (SMS/Facebook WiFi/ Voucher, etc.) and abundant wireless security technologies.
• Advanced Wireless Tech
  Optimise network performance with MU-MIMO, Band Steering, and Beamforming technologies.

Private Guest WiFi Network

An EAP235-Wall in each room allows guests to enjoy their own fast and private WiFi network, delivering a strong signal and providing corner to corner coverage.

MU-MIMO + Dual-Band

802.11ac (WiFi 5) Wave 2 MU-MIMO technology enables multiple users to access the internet simultaneously, for a network speed of up to 1,200 Mbps. Capable of transmitting in both 2.4 GHz and 5 GHz wireless band, it provides greater compatibility to connect a wide variety of devices.

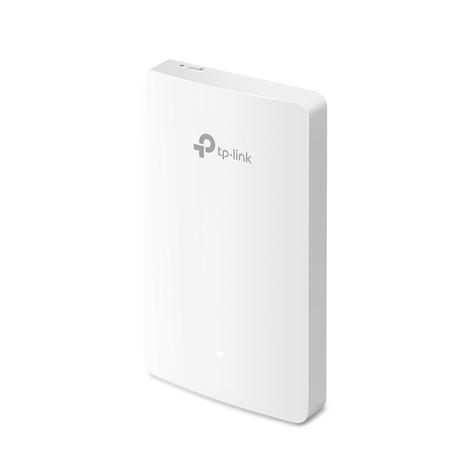

Compact & Inconspicuous Design

This thin wall plate access point — only 15 mm thick — features a sleek, minimalist appearance. It is designed to blend in with the décor of hotel rooms, hospitals, offices and school dormitories, to deliver powerful WiFi without clashing with the room.

PoE Powered

With 802.3af/802.3at Power over Ethernet supported, there’s no need to install additional wiring in the building. Simply plug in existing Ethernet cables and you’re ready to go.

Quick, Simple Installation

The EAP235-Wall is easy to install, so there's no need for extra costs, time, or professional knowledge. It fits three kinds of wall junctions:

• 86 mm wall junction box
• Standard EU wall junction box
• Standard US wall junction box

Full Gigabit Ports to Bridge Network

Equipped with four (4) Gigabit data ports (1 x uplink + 3 x downlink), with one of the downlink ports offering PoE pass-through, to connect multiple devices to your Gigabit network. Wired devices like VoIP phones can be powered with no need for extra electrical cables.

Omada — Smarter Cloud Solution for Business Networking

The Omada platform integrates network devices including access points, switches and gateways, guaranteeing a powerful business network with higher efficiency, higher security, and higher reliability.

Hassle-Free Centralised Cloud Management

100% centralised cloud management of the whole network from different sites — all controlled from a single interface anywhere, anytime.

Omada App

Follow the configuration instructions on the Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet.
