Netvio 4x4 Compact HDMI matrix | 4K/60 HDR, ARC, 4K/1080p scaling, audio outputs. Netvio GO & 360 compatible.
Netvio, a professional AV company, provides a fresh and creditable brand alternative with a different perspective towards product integration, hardware and software. Netvio aims to redefine and expand video product functionality beyond traditional standards whilst also providing the best overall value and user experiences.

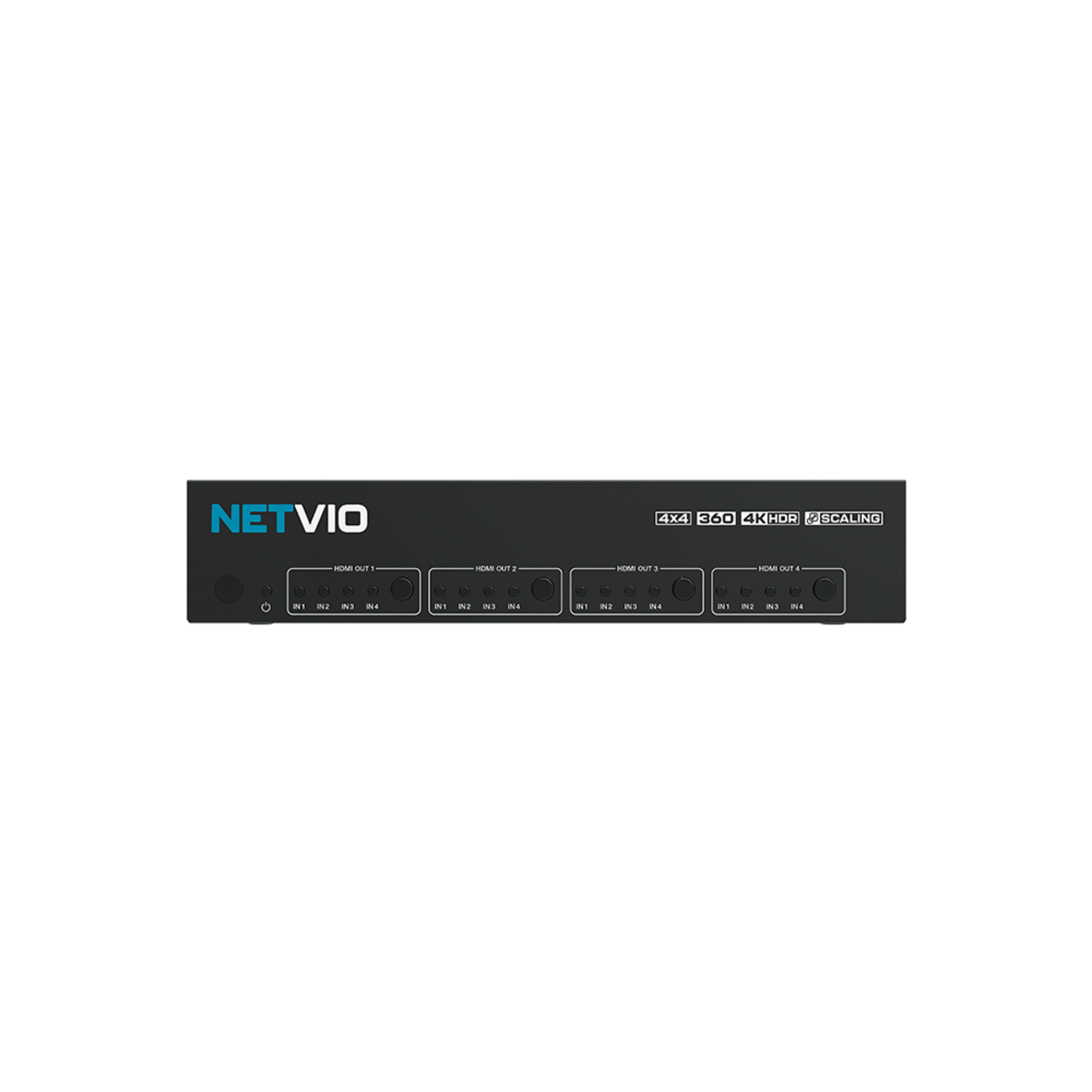

Netvio's 4 x 4 compact HDMI matrix switcher supports 4K/60 HDR, ARC, 4K/1080p scaling with audio outputs. It is also Netvio GO and 360 compatible. The NET-MX-H2-0404-10 simplifies the routing of AV signals from a range of input sources and is idea for many home and small business uses, where the application requires customisable, high speed AV signal routing from multiple sources to one or more destinations.
Despite the NET-MX-H2-0404-10's compact design it is more than capable of switching 4K/60 HDR media across all four Gb uncompressed HDMI input and outputs. The onboard scaling solves the reoccurring problem of how to seamlessly integrate the latest 4K/60 HDR displays with older legacy 1080P equipment.
The ARC audio return provides the best digital audio experience especially from popular embedded display applications. Capture ARC is ready for audio system connections using both analogue and digital outputs.
Compatibility:
GO: Stunning AV Control
An end user control application that doesn't compromise in the quality or function. Stunning full HD video previews are available.
360: Simplified Device Configuration
An intuitive guided workflow process regardless of the Netvio product or transmission platform.
Features
- Ideal for many home and small business use, where customisable, high speed AV signal routing from multiple sources to one or more destinations is required
- Simplifies the routing of AV signals from a range of input sources
- Switches 4K/60 HDR media devices across all four 18Gb uncompressed HDMI input and outputs
- Onboard scaling solves a reoccurring problem on how to seamlessly integrate the latest 4K/60 HDR displays with older legacy 1080p equipment
- ARC audio return provides the best possible digital audio experience especially from popular embedded display applications
- Compatible with Netvio's GO and 360
- Cost effective SafeGuard enhanced product protection for up to 10 years for 10% additional cost
Technical Specifications
- Encoding Data Rate HDMI: Max 17.82Gbs
- Max Video Transmission 3840 x 2160 60fps 4:4:4 8b
- HDMI Inputs / outputs: Supporting HDMI 2.0b resolutions including 3840 x 2160 60fps HDR
- Control: CEC, DDC
- Max Pixel Clock 600MHz / 600Mcsc
- HDR Compatibility HDR10, HDR10+, Hybrid Log-Gamma, Dolby® Vision
- Scaler Function 4K to 1920 x 1080 progressive
- HDCP; Inclusive up to 2.2
- Audio Formats LPCM 2ch, LPCM 5.1, LPCM 7.1, Dolby® Digital, Dolby® Digital Plus, Dolby® TrueHD, DTS, DTS Master
- Audio Outputs Four 2 channel variable line level stereo analogue audio jack sockets
- Four S/PDIF audio via female RCA socket, S/PDIF digital audio supporting uncompressed PCM and non linear PCM encoded bitstreams
- Audio Return Channel ARC capture from compatible display. Output through described audio outputs
- RS-232 Supports direct via a DB9 socket on the rear panel
- LAN Local discovery and API console via Netvio 360 & Netvio Go APP
- 3rd party integration via public API
- Drivers and Control Drivers available for control systems including C4, Crestron, RTi and Elan
- Discovery, configure, optimise, design via Netvio 360 utility
- Full spectrum AV control via free Netvio application for Apple and Android devices
- EDID Automatic, Onboard presets, Copy sync (RX)
- Power Supply External 12V PSU. Supporting worldwide AC voltages (e.g. 120V/60 USA, 230V/50 UK)
- Safety Approvals CE, UKCA, FCC, RoSH
- Free Software and Control Netvio 360 utility - discovery, configure, optimise, design and control
- Netvio GO - full spectrum AV control
- Dimensions Rack Space: Compact 1U
- Height: 44mm / 1.73"
- Width: 220mm / 8.66"
- Depth: 105mm / 4.13"
- Weight: 0.8kg
- Warranty 2 year standard warranty
- 3 year standard warranty (subject to online registration)
- 10 year SafeGuard - 10% product value
- In The Box Phoenix connectors
- Remote control
- Regionalised power lead
