Description
Delivery

Netvio, a professional AV company, provides a fresh and creditable brand alternative with a different perspective towards product integration, hardware and software. Netvio aims to redefine and expand video product functionality beyond traditional standards whilst also providing the best overall value and user experiences.

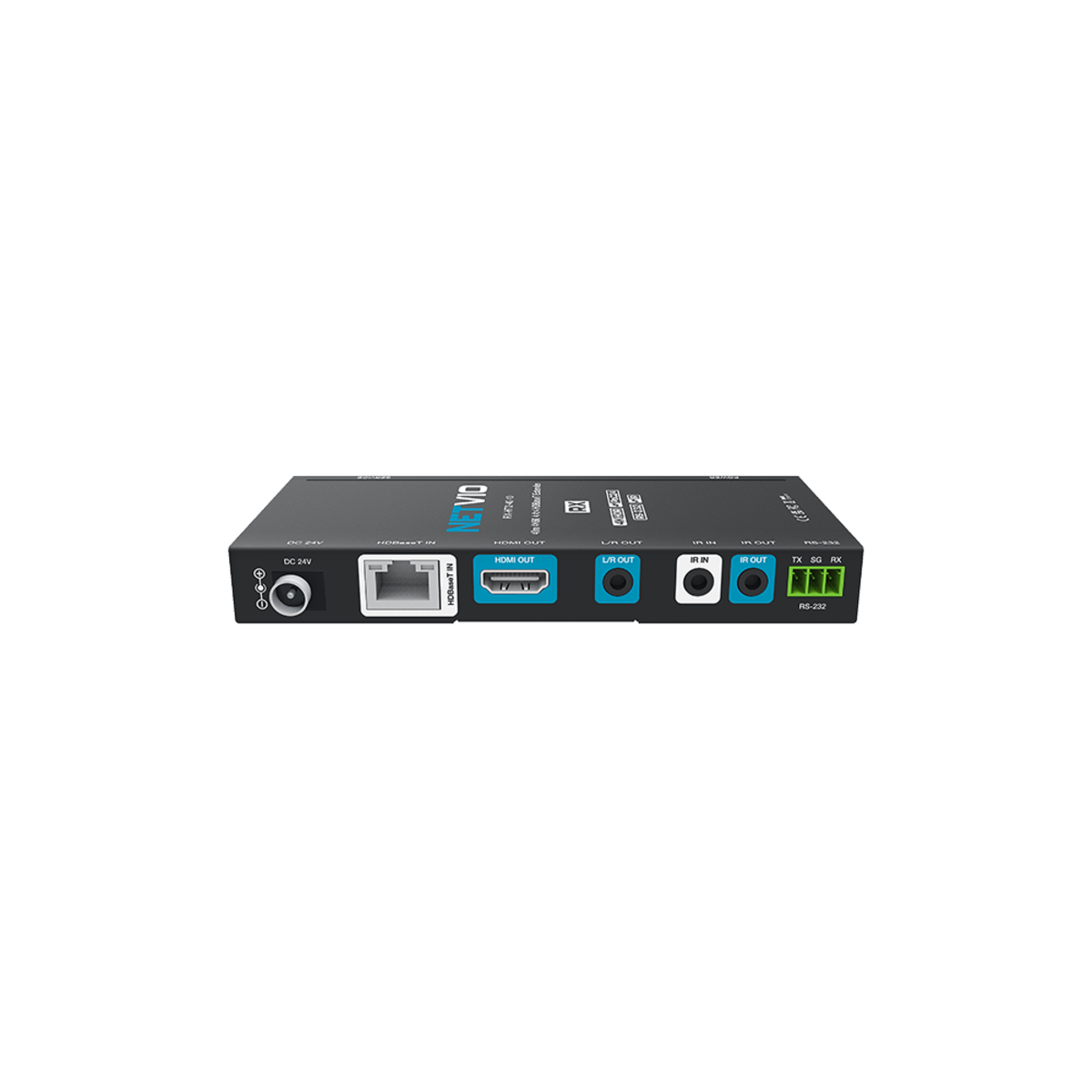

The Netvio NET-RX-HT2-40-10 4K/60 HDR HDBaseT Receiver over single category cable can send the latest bandwidth heavy sources over 40m when connected to a compatible matrix device. Each Netvio receiver comes complete with all required accessories to fully maximise product features and functionality.

Offering the latest 4K media 4K/60 HDR using Cat5e/6 with 40m support, if bandwidth exceeds HDBaseT 10.2Gbps limits, then light compression is added. The 2 way IR allows control of centralised media while providing an additional path way to send IR signals from the matrix to the display.

RS-232 straight or routed - direct zoned connectivity results in a simple pass through from control source, to matrix, then onto receivers. The NET-RX-HT2-40-10 features onboard support for routed RS-232.

This product is designed to run over unshielded twisted pair Cat5e/6/7 cable.

Please Note: Netvio recommend the use of Netvio approved IR accessories to ensure guaranteed performance and compatibility. In perfect conditions, IR performance is rated at 8m from display to remote control, but this will vary in differing light conditions. It may be necessary to adjust both the capture, sender device positions to achieve best performance, ensuring that remote batteries are in good condition.

Features

  • Capable of sending the latest bandwidth heavy sources over 40m when connected to a compatible matrix device
  • Designed to run over unshielded twisted pair Cat5e/6/7 cable
  • Each Netvio receiver comes complete with all required accessories to fully maximise product features and functionality
  • Offers the latest 4K media 4K/60 HDR using Cat5e/6 with 40m support
  • If bandwidth exceeds HDBaseT 10.2Gbps limits, then light compression is added
  • The 2 way IR allows control of centralised media
  • RS-232 direct zoned connectivity results in a simple pass-through from control source, to matrix, then onto receivers
  • Onboard support for routed RS-232
  • Compatible with Netvio's matrix switches. Please see the related items below for further details
  • Cost effective SafeGuard enhanced product protection for up to 10 years for 10% additional cost

Technical Specifications

  • Encoding Data Rate HDBaseT max 10.2Gbs subject to variable stream compression and up conversion
  • Max Video Transmission 3840 x 2160 60fps 4:4:4 8b
  • HDBaseT HDBaseT 10.2Gb @ 40m 4K/60 HDR, 100m /1080p
  • Supports CEC, DDC, 100BaseT Ethernet, RS-232 TXD, RXD and Infrared
  • HDMI Supporting HDMI 2.0b resolutions including 3840 x 2160 60fps HDR
  • CEC, DDC
  • Max Pixel Clock 600MHz / 600Mcsc
  • HDR Compatibility HDR10, HDR10+, Hybrid Log-Gamma, Dolby® Vision
  • HDCP Inclusive up to 2.2
  • Audio Formats LPCM 2ch, LPCM 5.1, LPCM 7.1, Dolby® Digital, Dolby® Digital Plus, Dolby® TrueHD, DTS, DTS Master
  • RS-232 Direct RS-232 Serial interface, 3 pin, via Phoenix style, 3.5mm pitch male receptacle
  • IR Bi directional Infrared, TX > RX, RX > TX via 3.5mm jack socket. Please refer to the wiring schematic within the additional information section on the Download tab
  • EDID Automatic, onboard pre-sets, copy sync (RX)
  • Power Supply 24V power over cable (PoC), provided by compatible matrix (For details of compatible matrix units, please refer to the related items section)
  • Safety Approvals CE, UKCA, FCC, RoSH
  • Dimensions Height: 15mm / 0.59"
  • Width: 140mm / 5.51"
  • Depth: 65mm / 2.56"
  • Weight: 250g
  • Warranty 2 year standard warranty
  • 3 year standard warranty (subject to online registration)
  • 5 year SafeGuard - 5% product value
  • 10 year SafeGuard - 10% product value
  • IN THE BOX Mounting brackets
  • IR accessories
  • Phoenix connectors
  • Compatible Matrix Switch Items NET-MX-HT2-0404-10
  • NET-MX-HT2-0806-10
  • NET-MX-HT2-0808-10
