Netvio 40m 4K/60 HDR | 70m 1080p | HDBaseT extender with ARC, 2-way IR, RS-232 & 2-way PoC.

Price Match
£522.90
Netvio 40m 4K/60 HDR | 70m 1080p | HDBaseT extender with ARC, 2-way IR, RS-232 & 2-way PoC.
Price Match
£522.90
in stock
Netvio 40m 4K/60 HDR | 70m 1080p | HDBaseT extender with ARC, 2-way IR, RS-232 & 2-way PoC. Product code: EX-HT2-403-10 £522.90  Inc. VAT
Want it delivered Tomorrow?
£9.99 Next working day  (11am cut-off, on most products we'll advise if not available)
£3.99 Standard delivery 2 - 4 working days (free on orders over £150)
Ask a Question
Please enter your details and we will get back to you.
Description
Delivery

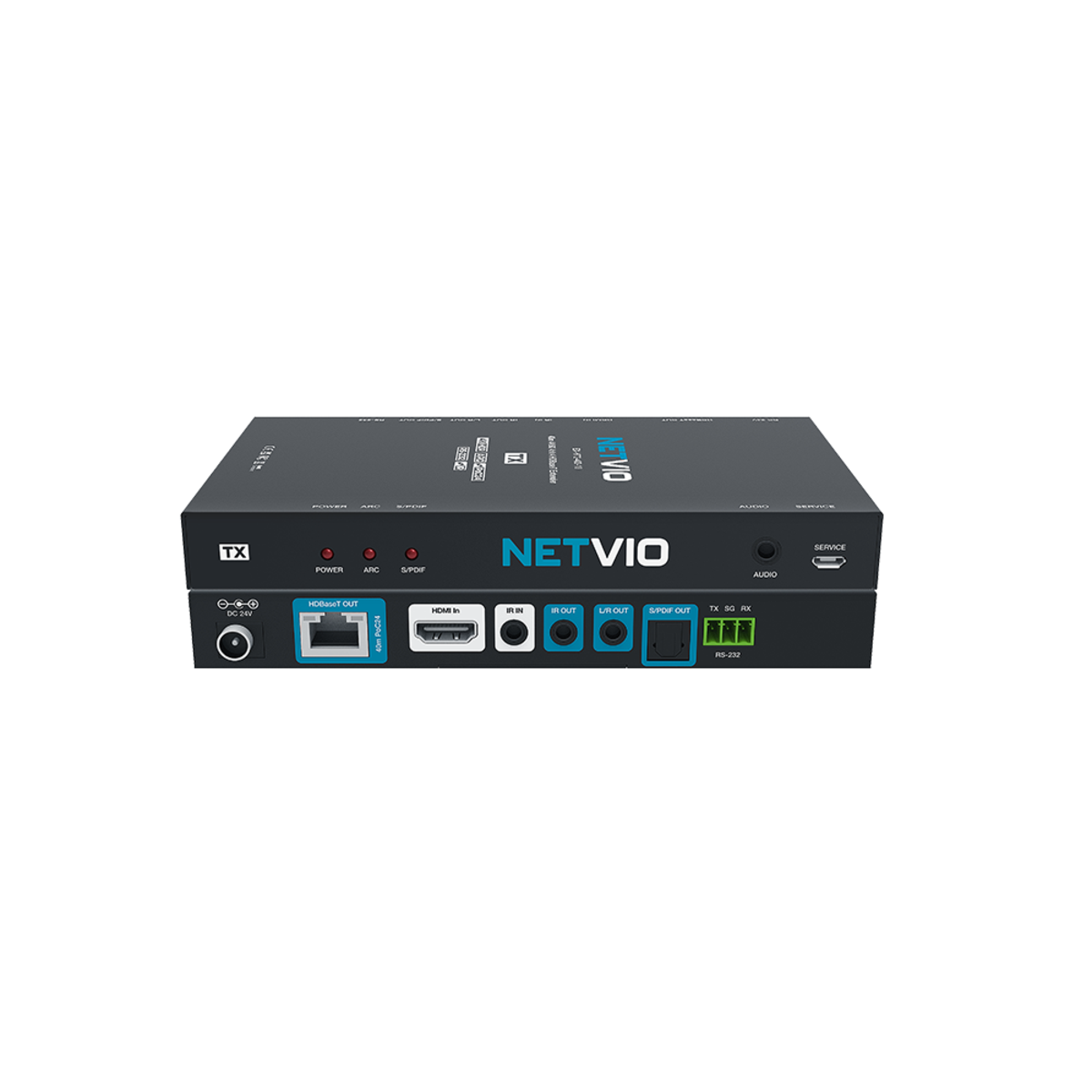

xNetvio's NET-EX-HT2-403-10 HDBaseT Extender supporting 4K/60 HDR and 1080p with ARC, 2 way IR, RS-232 and 2 way over single category cable (PoC) is capable of sending the latest bandwidth heavy sources over 40m with the ability to send digital ARC back to the transmitter device.

Netvio, a professional AV company, provides a fresh and creditable brand alternative with a different perspective towards product integration, hardware and software. Netvio aims to redefine and expand video product functionality beyond traditional standards whilst also providing the best overall value and user experiences.

Netvio's NET-EX-HT2-403-10 HDBaseT Extender supporting 4K/60 HDR and 1080p with ARC, 2 way IR, RS-232 and 2 way over single category cable (PoC) is capable of sending the latest bandwidth heavy sources over 40m with the ability to send digital ARC back to the transmitter device.

This 4K /60 HDR, HDBaseT extender uses single standard category cable and is compatible with many 4K media devices. It is capable of sending 4K up to 40m. If bandwidth exceeds HDBaseT 10.2Gbps limits, then seamless light compression is added. The 2 way power over cable (PoC) feature allows flexible installation with the ability to connect the PSU to either media source (TX) location or display area (RX).

Capturing ARC from either embedded HDMI or S/PDIF. TX device provides ability to select audio from display HDMI, S/PDIF or TX audio. The Netvio extender delivers easy connection to audio system via analogue or digital connections. The 2 way power over cable (PoC) feature allows flexible installation with the ability to connect the PSU to either media source (TX) location or display area (RX).

Netvio's 2 way IR allows control of centralised media while providing an additional path way to send IR signals from a control source to the display. Direct RS-232 connectivity results in a simple pass thru from control source (TX), to HDBaseT receiver (RX). All connector accessories are supplied.

Please Note: Netvio recommend the use of approved IR accessories to ensure guaranteed performance and compatibility. In perfect conditions, IR performance is rated at 8m from display to remote control, but this will vary in differing light conditions. It may be necessary to adjust both the capture, sender device positions to achieve best performance, ensuring that remote batteries are in good condition.

Features

  • 40m 4K/60 HDR HDBaseT extender features audio, video, control and power
  • Compatible with all latest standards including HDMI2.0b and HDCP2.2
  • Supporting latest (18Gb) digital audio and video standards including HDR-10, HLG, Dolby® Vision, DTS-X and Dolby® Atmos
  • Accepts popular high bandwidth media sources providing seamless transport over a dedicate HDBaseT AV network using Cat5e or Cat6 cables
  • HDMI or S/PDIF ARC capture
  • Switchable TX with both analogue and digital audio output connections
  • 2 way power over cable (PoC). PSU connection at either TX or RX
  • 2 way IR control: RX>TX, TX>RX
  • Direct bi-directional RS-232
  • Cost effective SafeGuard enhanced product protection for up to 10-years for 10% additional cost.

Technical Specifications

  • NET-EX-HT2-403-10 HDBaseT Extender: 4K/60 HDR and 1080p With ARC
  • Encoding Data Rates HDMI 17.82Gbp
  • HDBaseT 10.2Gbs
  • Visually lossless compression > 10Gbs
  • Video Resolutions (Max) 3840 x 2160 60fps HDR over 40m Cat5e/6/7 cable (1080P @ 70m)
  • Max Pixel Clock 600MHz
  • HDR HDR10, HDR10+, Hybrid Log Gamma, Dolby® Vision
  • HDCP Inclusive up to 2.2
  • EDID Automatic HDMI sink from RX to TX
  • Audio Formats LPCM 2ch, LPCM 5.1, LPCM 7.1, Dolby® Digital, Dolby® Digital Plus, Dolby® TrueHD, DTS,
  • DTS Master, Dolby® Atmos and DTS:X.
  • HDBaseT Video: HDBaseT (10.2Gb) @ 40m 4K/60 HDR or 70m/1080p
  • Supports CEC, DDC, RS-232 TXD, RXD and infrared
  • RS-232 Direct RS-232 Serial interface (3 pin) via Phoenix style, 3.5mm pitch male receptacle
  • IR Bi-directional infrared, TX > RX, RX > TX via 3.5mm jack sockets
  • Please see additional information in the Download Section for wiring schematic
  • ARC Audio: ARC capture from embedded HDMI subject to display capability
  • 1no. (RX) S/PDIF display audio input (supporting LPCM and proprietary bitstreams) audio via female optical TOSLink socket
  • TX toggle switch for audio source selection: Display HDMI, display S/PDIF, TX de-embed
  • Power Supply 24V external PSU supporting power over cable (PoC)
  • PSU can be connected to either TX or RX
  • Environment Operating temperature: 0°C / 32°F to 40°C / 104°F
  • Storage temperature: -20°C / -4°F to 60°C / 140°F
  • Relative humidity: 20% to 90%
  • Safety Approvals CE, UKCA, FCC, RoHS
  • Dimensions Per Device Height: 20mm / 0.79"
  • Width: 165mm / 6.50"
  • Depth: 88mm / 3.47"
  • Weight: 160g
  • Warranty 2 year standard warranty
  • 3 year standard warranty (subject to online registration)
  • 5 year SafeGuard - 5% product value
  • 10 year SafeGuard - 10% product value
  • In The Box Mounting brackets
  • IR Accessories
  • Phoenix Connectors
  • 24V PSU
