Netvio 1x4 | 18Gb 4K/60 HDR HDMI splitter with scaling, audio outputs & EDID configuration.

Netvio, a professional AV company, provides a fresh and creditable brand alternative with a different perspective towards product integration, hardware and software. Netvio aims to redefine and expand video product functionality beyond traditional standards whilst also providing the best overall value and user experiences.

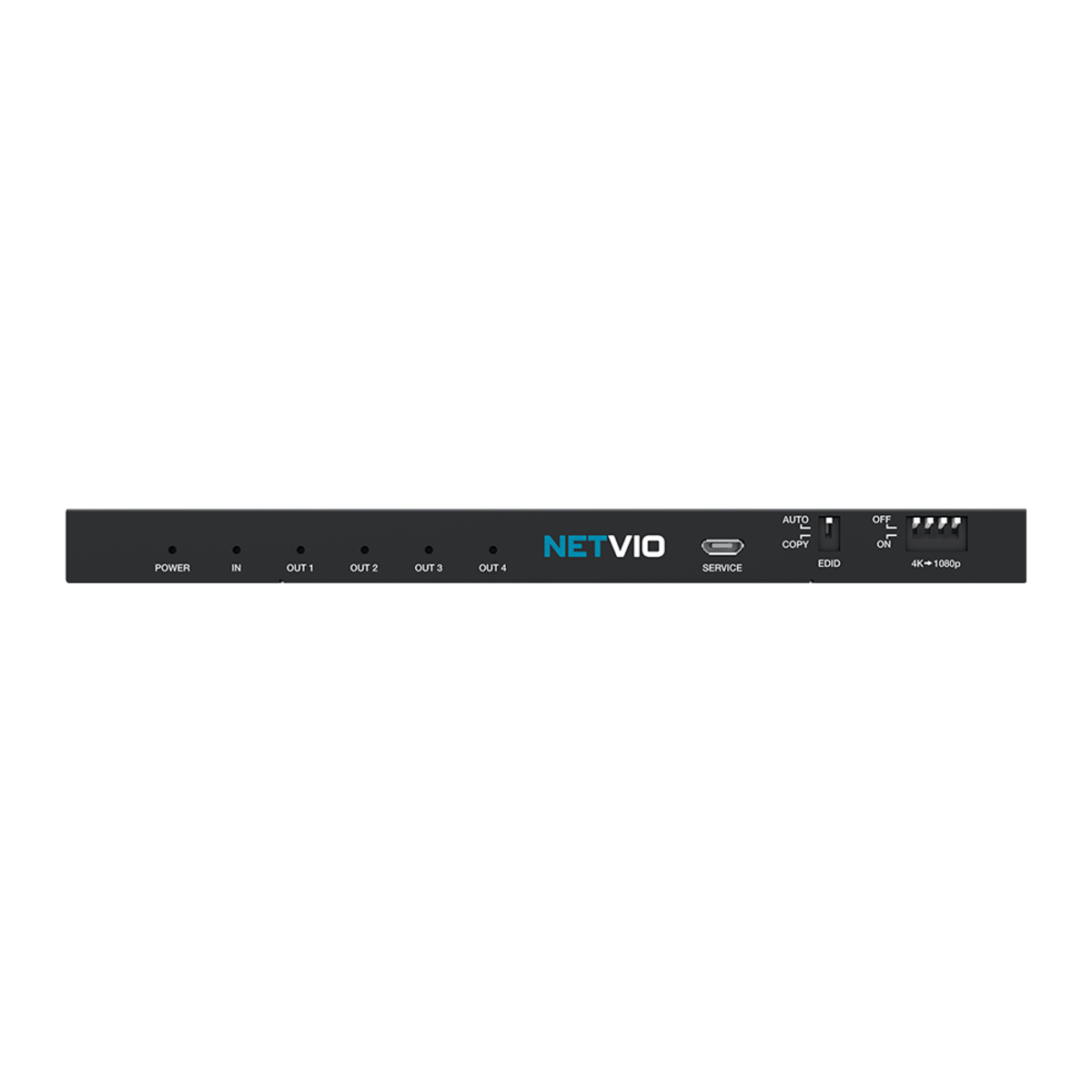

Compact yet powerful the NET-SP-H2-0104-10 1 x 4 HDR HDMI Splitter with scaling, de-embed audio, audio outputs and EDID configuration from Netvio supports 18Gb 4K/60.

On board scaling, within this splitter, very effectively resolves a reoccurring problem as to how to seamlessly integrate the latest 4K/60HDR displays with older 1080p capable displays. HDMI display incompatibility can cause several installation issues. With EDID copy function, these issues are fixed by capturing the precise setting from any display

The NET-SP-H2-0104-10 goes beyond just splitting functionality as it provides both analogue and digital outputs allowing direct connection to an audio system.

Please Note: For best performance, use High Speed HDMI or Active Optical Cables rated to at least 18Gb, especially for cable lengths in excess of 10m.

Features

• Compact yet powerful
• With installer benefits of 4K/1080p scaling and audio de-embed
• Supports 18Gb 4K/60 HDR
• Onboard scaling solves a reoccurring problem on how to seamlessly integrate the latest 4K/60 HDR displays with older legacy 1080p displays
•  Provides both analogue and digital audio outputs allowing for direct connections to an audio system
• EDID copy function resolves any problems by capturing the precise settings from any display
• For best performance, use High Speed HDMI or Active Optical Cables rated to at least 18Gb, especially for cable lengths in excess of 10m
• Cost effective SafeGuard enhanced product protection for up to 10 years for 10% additional cost.

Technical Specifications

• Encoding Data Rate HDMI: Max 17.82Gbs
• Max Video Transmission 3840 x 2160 60fps 4:4:4 8b
• HDMI Supporting HDMI 2.0b resolutions including 3840 x 2160 60fps HDR
• CEC, DDC
• Scaling 4K/1080p per output, selectable via independent switch settings
• Max Pixel Clock 600MHz / 600Mcsc
• HDR Compatibility HDR10, HDR10+, Hybrid Log Gamma, Dolby® Vision
• HDCP Inclusive up to 2.2
• Audio Formats LPCM 2ch, LPCM 5.1, LPCM 7.1, Dolby® Digital, Dolby® Digital Plus, Dolby® TrueHD, DTS, DTS Master
• Audio Outputs One 2 channel fixed line level stereo analogue audio jack socket
• One S/PDIF (supporting LPCM and proprietary bitstreams) audio via female optical TOSLink socket
• EDID Automatic, HDMI copy from OP-1
• Power Supply 5V external PSU
• Environment Operating temperature: 0°C / 32°F to 40°C / 104°F
• Storage temperature: -20°C / -4°F to 60°C / 140°F
• Relative humidity: 20% to 90%
• Safety Approvals CE, UKCA, FCC, RoSH
• Dimensions Height: 14mm / 0.55"
• Width: 120mm / 4.72"
• Depth: 62mm / 2.44"
• Weight: 166g
• Warranty 2 year standard warranty
• 3 year standard warranty (subject to online registration)
• 5 year SafeGuard - 5% product value
• 10 year SafeGuard - 10% product value
• In The Box Mounting brackets
• 5V PSU
