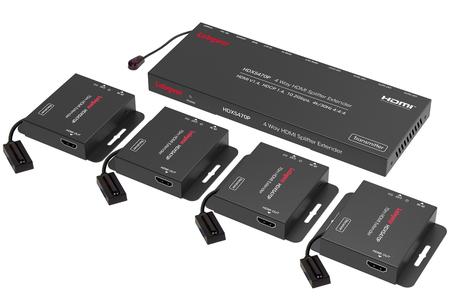

Labgear HDXS470P - 1080p/4K 70m/40m 4 Way HDMI Splitter/Extender Kit

Product Overview

The HDMI 4 Way splitter and extender splits the signal from a single source into 4x separate signals and extends high definition video/audio signals and IR,

up to 70m away over 4x single Cat5e/6/7 lead. It features EDID management, which allows and encourages source and display compatibility for seamless integration.

Using only a single lead for each display, a high definition source with HDMI output can be connected to HD displays with HDMI inputs over long distances.

Deep colour video, DTS-HD or Dolby TrueHD audio are supported and compatible with this system. In addition, the system supports bidirectional IR pass-through

which allows for remote control of the source from the location of any connected display. The HDXS470K operates in a similar way to the HDX70M except that

the transmitter also splits the signal and connects to 4x receivers over 4x individual Cat6/6a/7 leads. 4x IR Receivers are also provided, enabling remote

control of the source from all of the display locations.

Supports

  • HDMI 1.4, HDCP 1.4 compliant
  • Supports video resolutions up to 4K2K@30Hz
  • Transmission: 70m for 1080p@60Hz, 40m for 4K@30Hz
  • Supports HDR TV and 10.2Gpbs bandwidth
  • Advanced EDID management allows manual setting or EDID copying to allow optimum settings for video resolutions and audio compatibility (dip switches)
  • Supports cascading via HDMI loop out port
  • Supports POC functionality - transmitter's power supply powers the 4x receivers over the connecting network lead
  • Supports audio formats LPCM 7.1CH, Dolby True HD & DTS HD
  • Connections: HDMI IN/OUT, RJ45, IR IN/OUT
  • Weight: 454g (tx), 131g (each rx)
Model Number
HDXS47470P
Product Category
HDMI Splitter / Extender
