HD2-M44K Matrix 4 x 4 18Gbps 4K@60Hz 4:4:4 70M V2.0
Labgear HD2-M44K Matrix 4 x 4 18Gbps 4K@60Hz 4:4:4 70M V2.0
This compact matrix can connect four HDMI sources
to up to eight displays. It features four HDMI outputs
and each HDMI output is mirrored to provide an
RJ45 output which can carry a 4k2k@60Hz 4:4:4
HD signal up to 70m over individual CAT6/7
cables to the receivers supplied.
Supports:
• HD digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio.
• One-way IR matrix function allowing control of source devices from display locations
• 4K2K to 1080P downscaling on each output
• Control using the front panel buttons, IR remote, RS-232, LAN or Web GUI
• POC, Allowing receivers to be powered remotely by the matrix unit
• Advanced EDID management and CEC control
• HDR, HDR10, HDR10+, Dolby Vision, HLG high definition formats

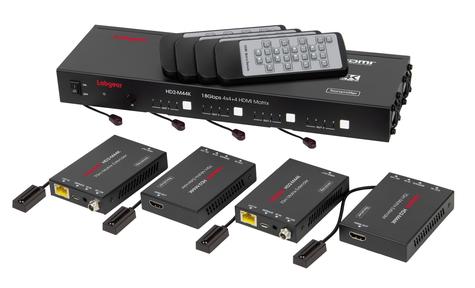

Kit Contains:
• 1x Matrix unit
• 4x Remote controls
• 1 x 12V𝌂2.5A Power Supply
• 1 x 1.5m RS-232 serial Cable
• 1 x 3-pin Phoenix Connector
• 4 x 1.5m IR Emitter Cable
• 4 x 1.5m IR Receiver Cable
• 10 x Mounts for Matrix & Receiver
• 1x User Manual
