Custom Pro 8x8 HDBaseT CSC Matrix (4K to 40m)

Price Match
£4989.60
Enlarged image
Custom Pro 8x8 HDBaseT CSC Matrix (4K to 40m)
Price Match
£4989.60
in stock

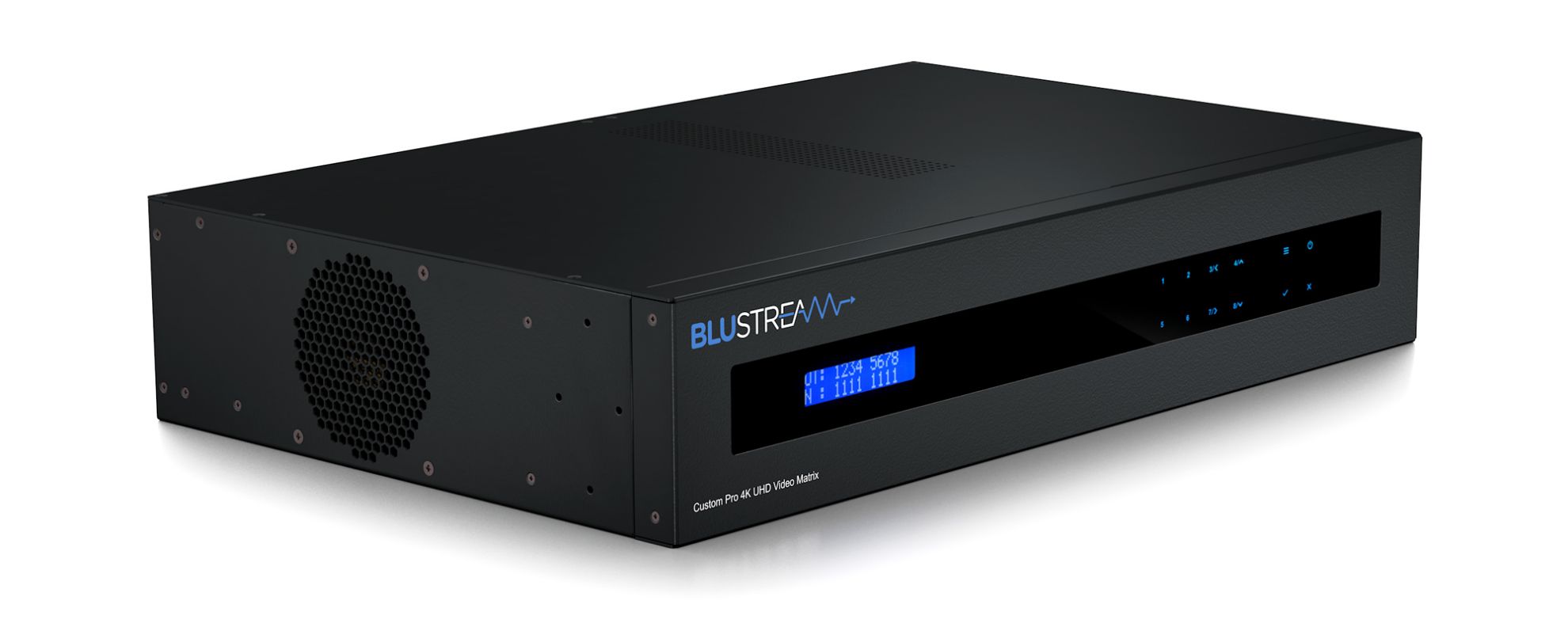

Custom Pro 8x8 HDBaseT CSC Matrix (4K to 40m) Product code: PRO88HBT70CS £4989.60  Inc. VAT
Want it delivered by Wednesday, 10th Jun?
£9.99 Next working day  (11am cut-off, on most products we'll advise if not available)
£3.99 Standard delivery 2 - 4 working days (free on orders over £150)
Ask a Question
Please enter your details and we will get back to you.
Description
Technical Specification
Delivery

The PRO88HBT70CS is a 70m Custom Pro 8x8 HDBaseT CSC Matrix designed to deliver 4K HDR performance across large-scale custom installations. It transmits HDMI 2.0 4K 60Hz 4:4:4 with HDCP 2.2 over a single CAT cable -- up to 70m per output (40m at 4K HDR) -- with per-output downscaling to accommodate displays of differing resolutions.

  • 8x8 HDMI 2.0 HDBaseT matrix with HDCP 2.2 compliance
  • CSC distribution up to 70m per output (40m at 4K HDR)
  • Independent per-output 4K downscaling for mixed display environments
  • 8x simultaneous HDMI outputs
  • Bidirectional IR and Power over Cable (PoC)
  • Audio breakout with line-level pre-amp volume control
  • Built-in web browser interface for system control and configuration
Product Category
PRO Series / Chassis
Dimensions
440 x 87 x 282 mm without feet (2U); 440 x 94 x 288 mm with feet
Installation
2U rack (rack ears included)
Weight
5 kg (shipping)
Power Supply
24V/8A DC
Ethernet Ports
1 x RJ45 (TCP/IP)
Contents
1x Custom Pro Hub Matrix, 2x PRO-IN4HAB, 1x PRO-8ABV, 1x PRO-8IR-V2, 1x PRO-OUT4TLS-V2, 1x PRO-OUT4TL, 1x 24V/8A Power Supply, 1x Remote Control, 1x Rack Mounting Kit, 1x Quick Reference Guide
Operating Temperature
0C to 40C
Storage Temperature
-20C to 60C
HDMI ARC
No
