Climate Garden CLG-W12

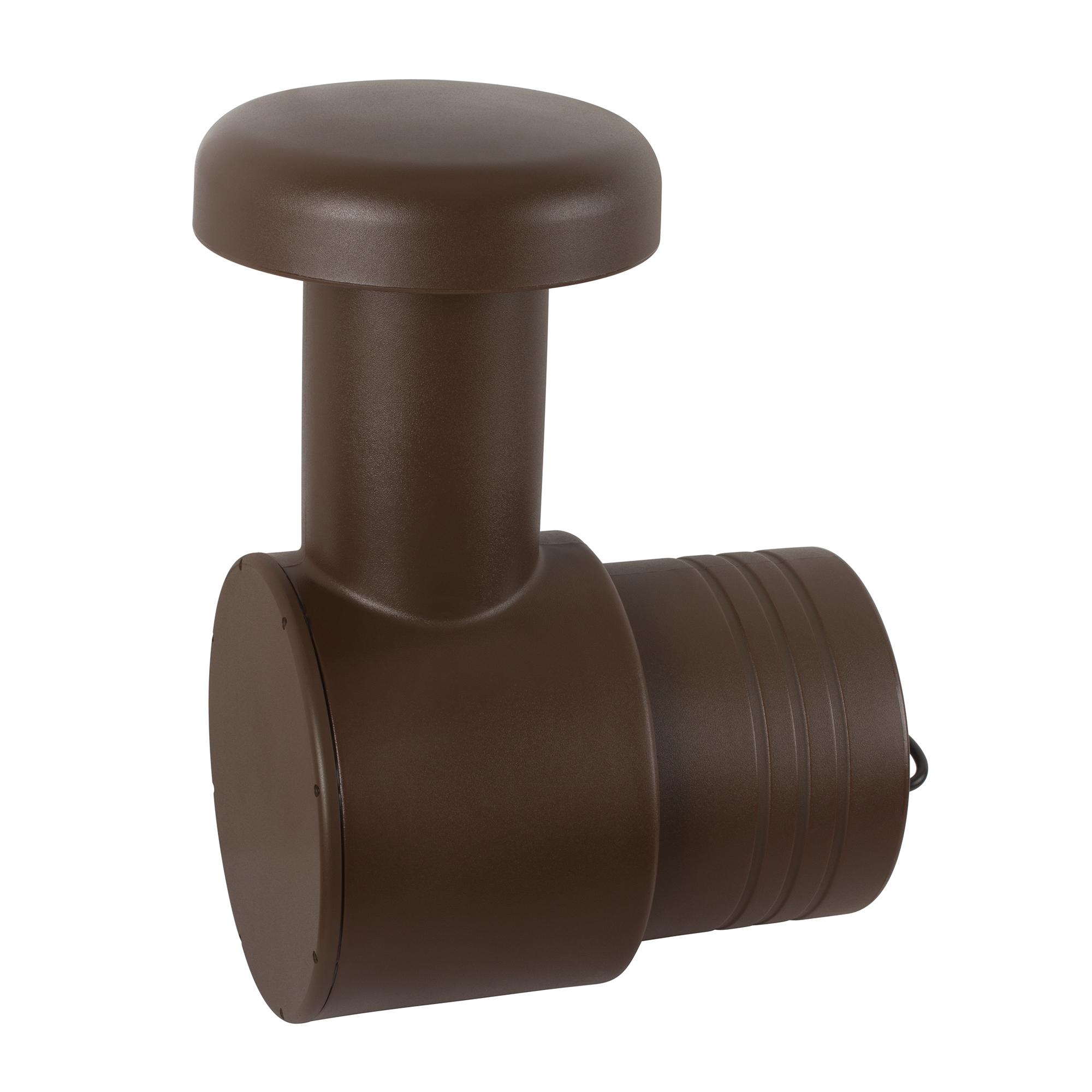

The CLG-W12 is a passive subwoofer. Optimised for discreet sub-surface installation, its proprietary Monitor Audio bandpass design incorporates an internally loaded 12" C-CAM driver which sits in a waterproof rotationally-moulded polymer enclosure buried below the garden surface - only the CLG-W12's domed output port is visible.
From this little ‘chimney' powerfully taut bass frequencies will join the clean mids and highs of the surrounding CLG140/CLG160 satellites for punchy and articulate full-range garden sound.
The CLG-W12 can be powered from a single amplifier channel at 4 ohms, with its 70/100 V line option recommended for cable runs over 10m (30ft) and for adding subwoofers to the system. In this line configuration, the CLG140/CLG160 satellites are daisy-chained to the CLG-W12, one after the other, up to a recommended maximum of twelve per subwoofer. System expansion to larger garden spaces simply involves the addition of amplifier channels, subwoofers and satellites.
In the simplest designs, satellites are connected in a mono configuration to one amplifier channel, the other channel powering the subwoofer. The use of a stereo power amplifier with 70/100volt line capability and crossover features will allow the adjustment of levels between bass and mid-high range. Alternatively, the system can be designed to provide stereo operation by adding elements to create left/right zones.
When installed the Climate Garden System delivers a smooth, wide-open and controlled frequency response from 30 Hz to 30 kHz in the targeted environment: better than many home audio systems! For patio or deck applications, the CLG-W12 will install within a planter box to enhance Monitor Audio's CL Series all-weather cabinet speakers with deep bass frequencies, giving custom installers additional design options.
Technical Specification
Frequency Response (-6 dB) 30 Hz - 100 KHz
Sensitivity (1W@1M) 87 dB
Nominal Impedance 4 ohms or 70/100 Volt line level (cable select)
Maximum SPL 110 dBA
Power Handling (RMS) 250 W
Recommended Amplifier Requirements 100 - 250 W
Drive Unit Complement 1 x 12" C-CAM cone, long throw sub-bass driver
Crossover Recommendation 100 Hz at a minimum of 12 dB/Octave (24 dB/Octave optimum)
External Dimensions (H x W x D) 750 x 380 x 505.5 mm (19 1/2 x 14 15/16 x 19 7/8")
Connection Encapsulated cable connection
Environmental Protection Rating IP54
Colour / Finish Brown
Weight (packaged) 19.5 kg (42 lb 14 oz)
Click here for more details from the manufacturer
