SCP HNC ProPlus HDBaseT certified CAT6,23AWG, Dca-s3,d2,a3 rated, 550Mhz, 305m
Structured Cable Products is a leading global manufacturer and supplier of low voltage cables and accessories for the residential and commercial custom installation, A/V and pro A/V, security, satellite, cable and Data/Telecom markets.

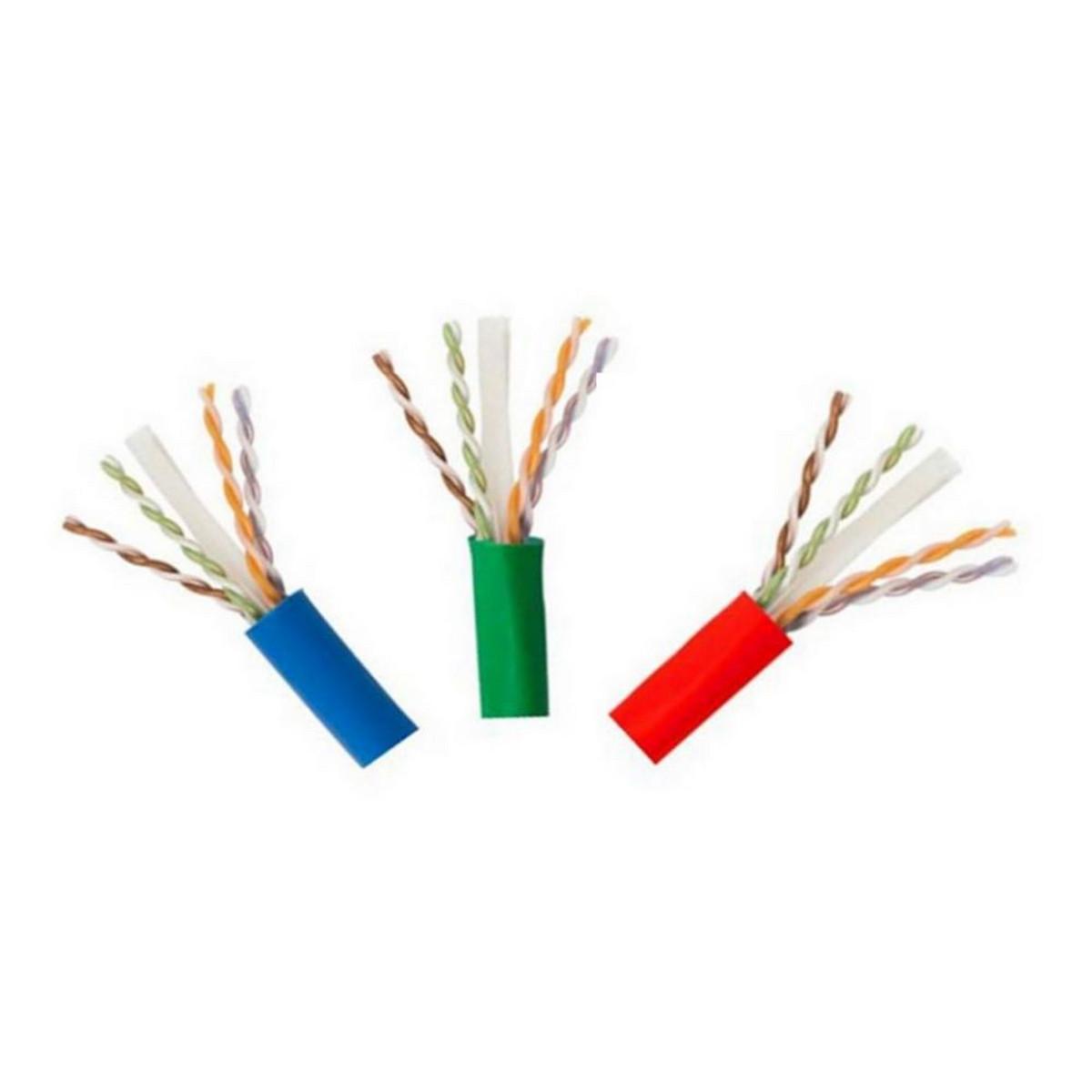

SCP's HNC CAT 6 UTP cables raise the performance of cables to a new level and they are the first Category 6 cables recommended and approved by HDBaseT. These cables are packaged in a special black SCP Pull Box allowing guaranteed tangle free pulling.
SCP's cables are certified to meet todays demanding commercial and residential networking and A/V applications for twisted pair cables and performance is optimised with 4 balanced twisted pairs on 23 AWG insulated solid bare copper conductors with a centre spline separating the pairs. In addition, these cables are constructed to create a round and flexible cable for easy pulling and stripping of the LSZH jacket.
- HDBT certified
- Improved signal integrity
- Stable electrical performance
- Certified test report in each box
- Industry best Pull Box
- Recommended by WyreStorm®.
Material - Solid bare copper
Size - 24AWG x4P
Construction - 1/0.57 +/-0.005mm
Insulation
Material - HDPE
Minimum Thickness - 0.200mm
Average Thickness - 0.220mm
Diameter - 1.03 +/-0.01mm
Jacket
Material - PVC LSZH
Minimum Thickness - 0.60mm
Average Thickness - 0.54mm
Diameter - 6.20 +/-0.10mm
Rip Cord - Nylon
Bend Radius - Min 20D/125mm
