INSTALL(R) Cat6 HDBaseT LZSH 305m (Box)

Price Match
£200.88
INSTALL(R) Cat6 HDBaseT LZSH 305m (Box)
Price Match
£200.88
in stock
Product code:
Want it delivered by Wednesday, 9th Oct?
£9.99 Next working day  (11am cut-off, on most products we'll advise if not available)
£3.99 Standard delivery 2 - 4 working days (free on orders over £150)
Ask a Question
Please enter your details and we will get back to you.
Description
Delivery

UTP CAT6 4 Pair HDBaseT™ Recommended


550MHz 4 Pair 23AWG Solid Conductor CAT6 [ISO/IEC11801, TIA/EIA568B]


Mediacoms Structured Wiring range is designed to offer higher performance than the standard Category 6 cables available today. These cables are
designed for faultless signal transmission and offer headroom to support today's bandwidth intensive applications for twisted pair cabling whether it be
in data networks, control systems, CCTV over IP, home connectivity, or digital signage,
and are HDBaseT™ Recommended.
These cables exceed performance standards for TIA/EIA 568-C.2 Category 6, ISO/IEC 11801 Ed2 Class E; and EN 50173-1:2011.

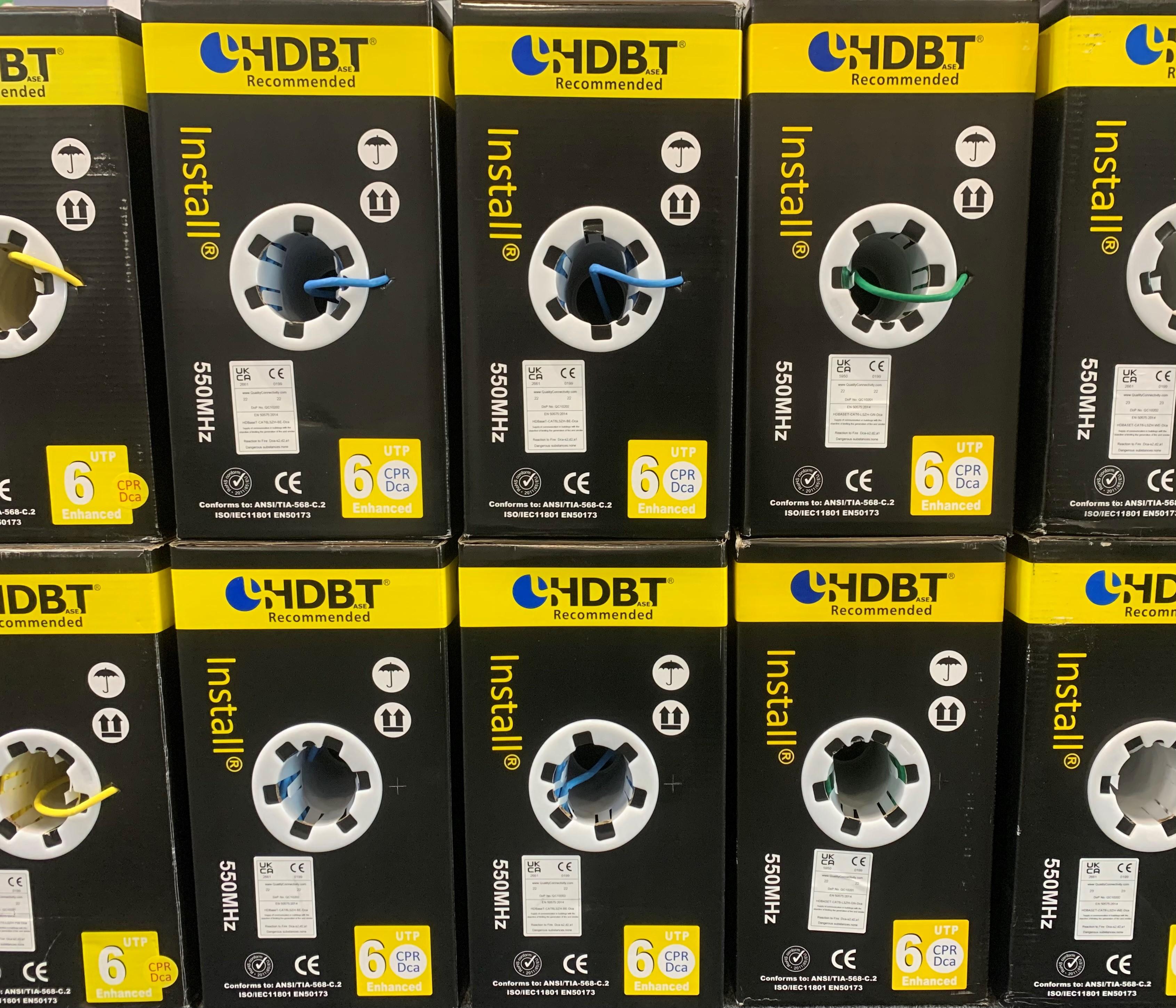

Cables supplied in 305m reelex boxes are sequentially meter marked to ensure you always know the amount of cable remaining at your disposal, sheath
printing includes batch marking for full quality traceability.
Our range is backed with a Lifetime Warranty.


In addition to the CAT6 UTP Cables described here, we also stock CAT5e UTP and FTP Cables, CAT6 FTP, CAT6A, CAT7, CAT7A, and CAT8.1
Please ask about our range of Smart Home Cables including LSZH Speaker / KNX / Lutron

Physical Characteristics

Conductor: Solid Bare Copper Wire
Size: 23AWG (1/0.53 - ±0.005)
Nº of Pairs: 4 Pairs [w/ Plastic Separator]
Insulation: HDPE Ø 0.93mm (±0.03mm)
Sheath Material: LSZH
Sheath Dimensions: Ø5.80mm (±0.4mm)

Sheath Colours: Grey Black Blue Green Orange Purple Red Yellow White

Weight: 58kg/km
Operating Temperature: -40°C - +75°C
Installation Temperature: -30°C - +65°C
EN50575 CPR Class: Dca, s2,d2,a1
HDBaseT™ Reference: CN-04590

Electrical Characteristics

Frequency
(MHz)
RL (dB)
min.
Attenuation
(dB/100m)
max ≤
NEXT
(dB)
PSNEXT
(dB)
PSELFEXT
(dB)
ELFEXT
(dB)
1 20.0 2.0 74.3 72.3 64.8 67.8
4 23.0 3.8 65.3 63.3 52.8 55.8
8 24.5 5.3 60.8 58.8 46.7 49.7
10 25.0 6.0 59.3 57.3 44.8 47.8
16 25.0 7.6 56.2 54.2 40.7 43.7
20 25.0 8.5 54.8 52.8 38.8 41.8
25 24.3 9.5 53.3 51.3 36.8 39.8
31.25 23.6 10.7 51.9 49.9 34.9 37.9
62.5 21.5 15.4 47.7 45.4 28.9 31.9
100 20.1 19.8 44.3 42.3 24.8 27.8
200 18.0 29.0 39.8 37.8 18.8 21.8
250 17.3 32.8 38.3 36.3 16.8 19.9

Colour Code
Pair 1 Blue, White/Blue Pair 3 Green, White/Green
Pair 2 Orange. White/Orange Pair 4 Brown, White/Brown
