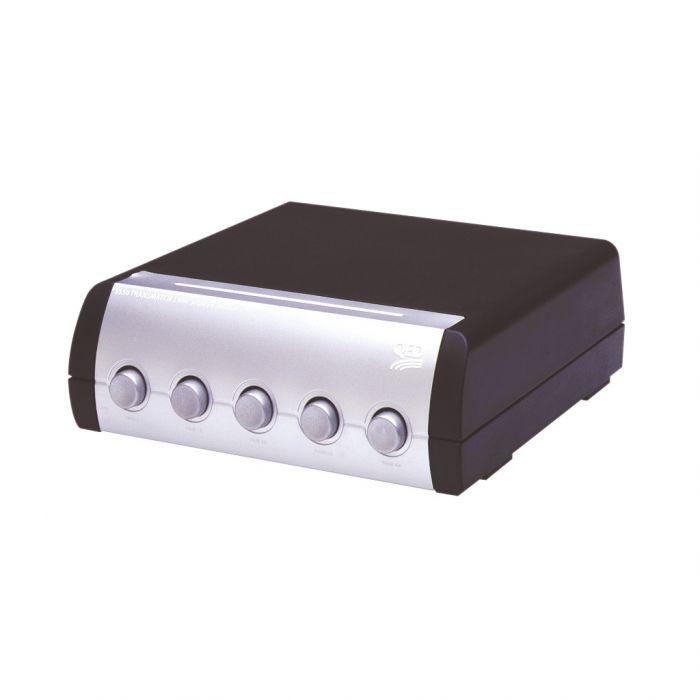

QED SS50 5 WAY SPEAKER SWITCH

Price Match
£279.95
QED SS50 5 WAY SPEAKER SWITCH
Price Match
£279.95
in stock
QED SS50 5 WAY SPEAKER SWITCH Product code: A-SS50 £279.95  Inc. VAT
Want it delivered by Wednesday, 9th Oct?
£9.99 Next working day  (11am cut-off, on most products we'll advise if not available)
£3.99 Standard delivery 2 - 4 working days (free on orders over £150)
Ask a Question
Please enter your details and we will get back to you.
Description
Delivery

SS50 5 Way Speaker Switch

The SS50 5-Way Transmatch Speaker Switch allows you to switch between up to five pairs of speakers for your ultimate set up

Safely connects up to 5 pairs of speakers to the same amplifier using high quality impedance matching transformers to ensure that the amplifier load impedance remains above the minimum value.

FEATURES AND BENEFITS

  • Unique Impedance Matching Design
  • "A" Pair bypasses transformer for Best Sound Quality.
  • For Pairs 'B1' to 'B4' Transmatch Converts a Net 2 Ω Load Back to 8 Ω for Safe Amplifier Operation
  • *minimum load impedance - 4 Ω (Using Five Pairs of 8 Ω Speakers)
  • Power Rating: 60 Watts RMS.
  • Electronic Overload Protection
  • Silver Plated Switch Contacts
  • Large Cable Entry Protected Terminals (3.95 mm dia)
  • Dimensions (HxWxD): 55 mm x 157 mm x 155 mm

QED SWITCHING FAQ

What are the differences between the speaker switches in terms of impedance?

All the speaker switches are configured so that if you use 8 Ω speakers the minimum impedance seen by the amplifier will be 4 Ω

What are the benefits of series vs parallel ?

The switches which have more than two sets of speakers use a combination of series and parallel switching to achieve the minimum impedance of 4 Ω no matter what combination of speakers are switched on. For the two way switches there is a choice between exclusively series or parallel versions. If you have 8 Ω speakers (and a 4 Ω min amp) you should always use the parallel switch. If you have 4 Ω speakers and a 4 Ω min amp you should always use the series switch.

All QED switches load on 4 Ω using 8 Ω speakers. What happens if my speakers are 6 Ω?

1. Check your amp - if it can cope with a 3 Ω load or less (and some can) then you are alright. The rule is you must always use speakers with double the impedance of the amp minimum. 2. If you only have two pairs of speakers then use the two way SERIES switch.

How do the switches deal with power, e.g. if I have an amplifier with more than 150 watts?

These accessories use mains switches which are rated at 6A which means the max power they can handle is 288W given an 8 Ω load

If my amp is rated 6-16 Ω should I really be running a 4 Ω load?

NO, NEVER - you should use 12 Ω minimum speakers. You can get 16 Ω speakers though - but it may just be easier to change the amp.

Can I use them in reverse e.g. as an amplifier switcher (we know the answer is no, but why?)

NO - because the speaker switches are designed to have two sets or more of speakers attached to one amp, if used in reverse there is always the possibility of connecting two amps at once to one pair of speakers resulting in damage to one or both amps.

What is the technical definition of 'transmatch'?

For the 5 way speaker switch we don't use parallel or series switching but use transformer coupling instead. Again you have to use 8 Ω speakers minimum if your amp is a 4 Ω minimum amp. The impedance is then matched by the transformer (hence the name) so that a net 1.6 Ω load (all 5 sets of 8 Ω speakers switched on)is converted back to a 4 Ω load. One pair of speakers (A) is not connected to the transformer but is directly connected to the amp, these will be the main speakers. The four B pairs are connected via the transformer.
