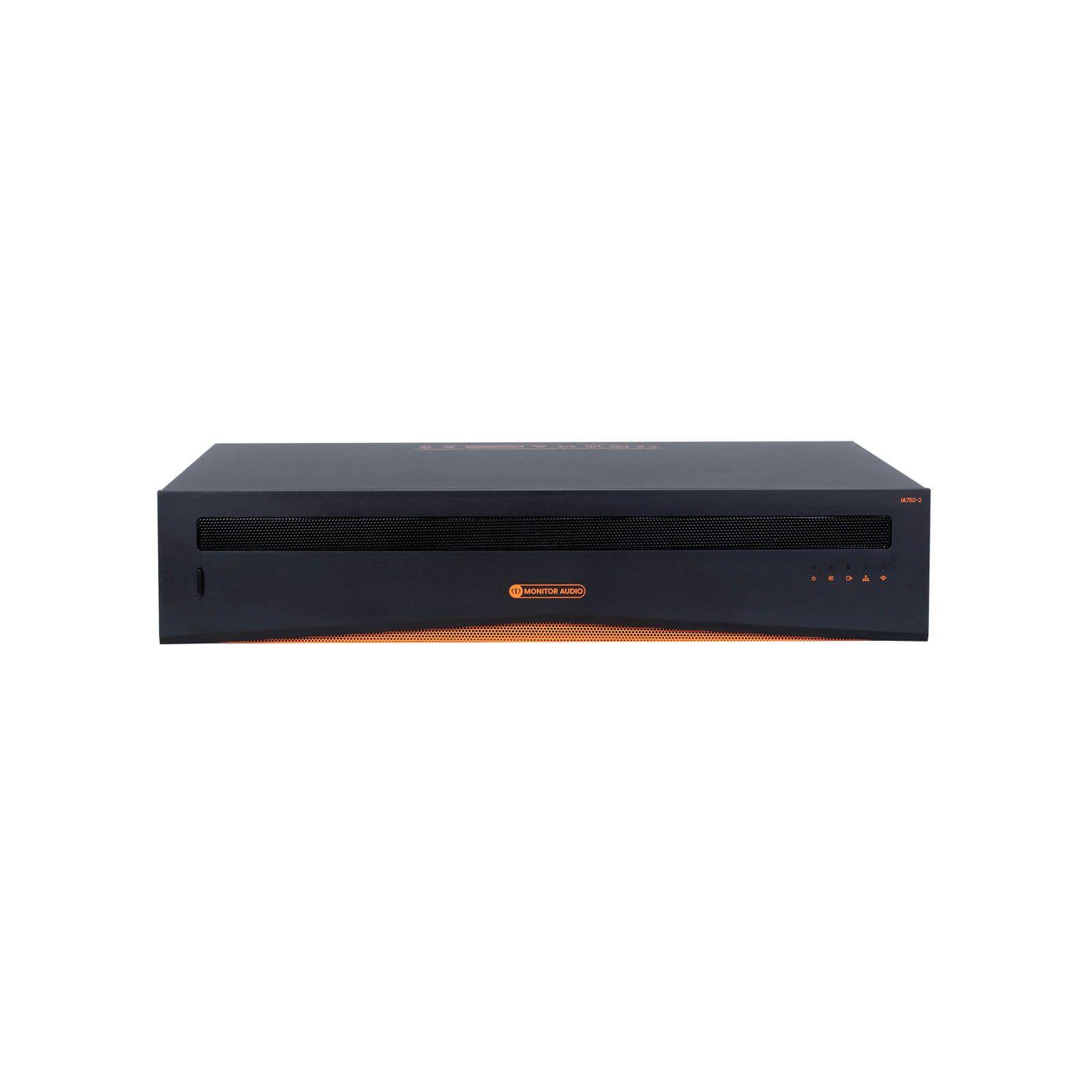

CI Amp IA750-2
The IA750-2 is perfect for larger installations and outdoor systems. It offers two channels of 750 W each, plus it is ideal for subwoofer installations thanks to its power sharing technology where it can deliver 1500 W to Monitor Audio’s Cinergy Sub15. A 2U full width high power amplifier, it features full DSP matrix configuration using a web app configurator and is a breeze to install and use.
Note: Rack installation kit included.
Key features:
- 2 x 750 W output
- Advanced DSP for precise configuration
- 2U full-width chassis
Specification
- Channels: 2
- Output Power @ 2 Ohms: 2 x 750W SE
- Output Power @ 4 Ohms: 2 x 750W SE, 1 x 1500W BTL
- Output Power @ 8 Ohms: 2 x 400W SE, 1 x 1500W BTL
- Output Power @ 70V : 1 x 1200W BTL
- Output Power @ 100V: 1 x 1500 W BTL
- Maximum Total Output Power, all channels driven: 1500 W
- Power Consumption: 350 W
- Thermal Output: 1200 BTU
- Polarity (Default): Non-inverting
- Dimensions: 88 x 440 x 329 mm (36/16 x 175/16 x 1215/16”)
- Output Voltage: 80Vp / 160Vpp (SE unloaded), 160Vp / 320Vpp (BTL unloaded)
- Signal to Noise Ratio: >108dB (A-weighted, 20Hz – 20kHz, 8 Ohm load)
- THD+N (typical): <0.05% (20 Hz – 20 kHz, 8 Ohm load, 3db below rated power)
- Frequency Response: +0/-0.25dB 20Hz – 20kHz (8 Ohm load, 3dB below rated power
- Protection Circuits: Short circuit -, DC, Undervoltage -, Temperature – and Overload protection
- Power Supply: Switch mode power supply with Power Factor Correction (PFC) and standby converter
- Operating Voltage/Frequency: Universal Mains, 100 V – 240 V, 50 Hz – 60 Hz
- Standby Consumption: <0.5W
- Accessories: Rack mount kit (pre-installed)
- Power Ratings: 1% THD @ 120Vac and 230Vac
- Cabinet Finish: Black Anodised
- Warranty: 5 years
| Shipping Weight (kg) | 14.500000 |
|---|---|
| Colour | Black |
| Manufacturer | Monitor Audio |
| Type | Multi-zone Amplifier |
| Product Range | Streamers & Amplifiers |
| Environment | Indoor |
| Frequency Response | +0/-0.25dB 20Hz – 20kHz (8 Ohm load, 3dB below rated power) |
