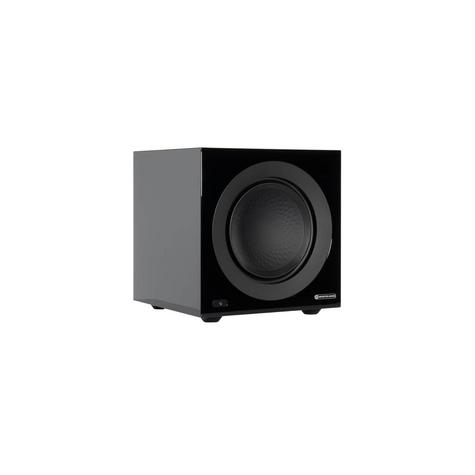

Anthra W10
The W10 is the most compact model within the Anthra subwoofer series. It features a 10” (25 cm) Rigid Surface Technology II (RST II) C-CAM high-excursion driver powered by a Class-D 500 Watt amplifier, housed within a comprehensively internally braced, sealed-box cabinet.
The latest firmware is V1.0.434. Click here for more information.
Features at a glance:
- 10” Rigid Surface Technology II
- C-CAM high-excursion driver
- Class-D 500 Watt amplifier
- Full-colour LCD display
- RCA outputs
- Massive motor assemblies
- Compatible with MaestroUnite
- XLR inputs
- XLR outputs
- MaestroUnite Setup
Specification
- System Format: Active – Sealed Cabinet
- Drive Unit Complement: 1x 10" (254 mm) High Linear-Excusion Triple Suspension Driver
- Amplifier Classification: High-Efficiency Class-D
- Lower Frequency Limit: -6dB @17Hz
- Upper Frequency Limit: (LPF Off) -6dB @400Hz
- Driver Excursion (pk-pk): 50 mm
- DSP: 28 Bit 50 MIPS Configuratable through MaestroUnite
- Analogue Digital Conversion: Autoranging Input which combines a 10Vrms maximum input with low signal to noise for small signals
- Amplifier Output Power, 240Vac: Instantaneous: 500 W* | Continuous short-term: 425 W**
- Amplifier Output Power, 120Vac: Instantaneous: 450 W | Continuous short-term: 390 W
- LED UI Control: Brightness, On-Off
- Phase Control: 0-360 Degrees measured at LPF Crossover
- Low Pass Filter: 20-200Hz LPF with Roll off Adjustable from -3 to -48dB/Oct
- Custom EQ: Configurable through MaestroUnite;3 pre-defined EQ curves plus 3 custom EQ curves each with 8 band custom EQ supporting (Peaking, High Shelf, Low Shelf, High Pass)
- Volume Level: Wide adjustable input gain to allow maximum output from a wide range of input signals
- Inputs: Stereo Unbalanced RCA (or mono/LFE using only connector marked LFE)Mono/LFE Balanced XLR
- Outputs: Stereo unbalanced outputs with unbuffered throughput from RCA Inputs | Mono/LFE Balaned XLR outputs with unbuffered throughput from XLR Input
- Mains Input Voltage: Universal Mains, 85-265VAC
- External Dimensions (without feet) (HxWxD): 321 x 321 x 321 mm
- Power Consumption: 120 W
- Cabinet Construction: Braced 18 mm thick MDF with 36 mm front baffle
- Grille: Cloth covered magnetically attached Grilles
- Weight: 20.06 kg (44 lb 1 oz)
- Warranty: 5 years
* Maximum RMS output for an instantaneous signal
** Sinewave for 10 seconds
Click here for more details from the manufacturer
