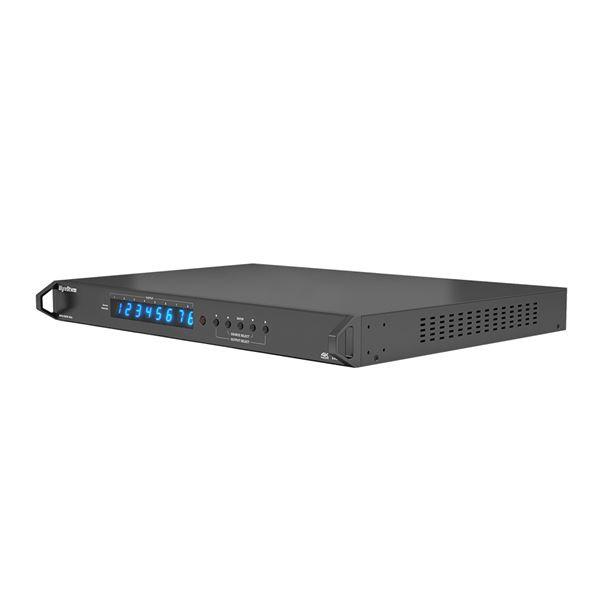

WyreStorm MXV 4K HDR 4:4:4 60Hz HDBaseT 8x8 Matrix Switch with Zone Audio De-Embed

Offering transmission of 18Gbps HDMI content up to 35m / 115ft by pairing HDBaseT™ with powerful without loss compression, the MXV-0808-H2A Matrix Switch from WyreStorm brings the familiar power of the WyreStorm H2 series to a compact 1U chassis. With 8 HDBaseT™ zone outputs and 4 mirrored HDMI outputs, which can be paired with WyreStorm’s hybrid HDMI cables or any extender and CEC triggering for all 12 connected screens, this matrix switch enhances the offering for modern homes or commercial installations.

Bringing without loss compression technology from the flagship H2 X C matrix platform, the WyreStorm Matrix Switch can handle both current and future video content technologies up to 4K/60 4:4:4 and high frame rate HDR. With audio functionality to match its video capability, the WYR-MXV-0808-H2A-V2 has the proven ability to extract audio signals from either source devices or from the output, following the zone.

Having S/PDIF connectivity means having the flexibility to send multi-channel 5.1 audio to local AVR's or downmix to stereo using the EXP-CON-DAC-D. Working automatically on signal presence or triggered via the API, the Matrix Switch can send power trigger commands to all compatible connected screens or projectors meaning an integrated autonomous control solution.

In addition to the audio breakout ports, this unit features four HDMI mirrored output ports which can be paired with any of WyreStorm’s HAOC hybrid optical HDMI cables for transmission up to 50m / 164ft or any extender for transmission of HDBaseT™ or OM3 fibre.

With these figures the WyreStorm MXV-0808-H2A-V2 resoundingly enhances the offering for the modern home or commercial installation.

FEATURES

Use with RXV-35-4K for 35m/115ft transmission of 2160p 4:4:4/60

• 4K HDR HDBaseT™ 8 x 8 Matrix Switch, supporting:
• Content up to 4K/60 4:4:4 and RGB 8 bit
• The latest HDR standards, including 60Hz HDR-10 and HLG and Dolby
• Vision™ at 30Hz
• HDCP 2.2 encryption technology ensuring compatibility with the latest
• 4K UHD content and sources HD Multichannel audio up to DTS:X and Dolby Atmos® to all outputs
• Proprietory compression algorithm enables 60Hz 4K UHD content (4:4:4 or HDR) to be sent over HDBaseT™ to 35m / 115ft
• 4 HDMI outputs mirroring HDBaseT™ Outputs 1 to 4 for connecting additional slave screens, projectors or AVR’s
• HDMI Inputs and HDMI outputs support bandwidths of up to 18Gbps
• Compatible with DVI-I and DP++ v1.3 signals from compatible devices
• 8 Assignable audio outputs allow audio to be independently de-embedded from sources or outputs via Toslink optical
• Automatic (signal sensing) or manual (API operated) CEC power triggering of all connected screens or projectors (CEC compatibility required)
• A/V Mute function gives complete distribution control to a user allowing the signal to any zone to be independently switched off
• SmartEDID feature also dynamically detects display/source capabilities and automatically outputs the highest possible resolution
• Additional EDID management through DIP switches for global setting or via WebUI for independent management of EDID per source
• Assign a different EDID to each connected source device
• Embedded WyreStorm WebUI enables simple source switching and installer set up and configuration
• WebUI includes full EDID management to read, copy, store or import EDID from connected devices
• API triggered standby mode places the unit into a low power state allowing for lower power consumption during downtime
• Flexible control options. Front panel buttons, infrared remote control, local IR, RS-232, Telnet or WebUI
• 3.5mm jack input for receiving local IR commands out of line of sight
• Simple switching matrix remote control included, which can also be learned into a universal remote handset to allow the control of multiple devices from one handset
• 2 way IR for far end device control from control system or source control from a zone
• Option for end-user WebUI switching interface
• Compact 1U chassis with adjustable depth rack mounting brackets included
• US, UK, EU & AU Power cables included
• Can be combined with WyreStorm EXP-CON-DAC-D digital audio converter to downmix Dolby Digital 5.1 content to mix stereo and surround sound zones
• Capable of transmitting content to 50m/164ft using WyreStorm HAOC range of hybrid optical HDMI cables
