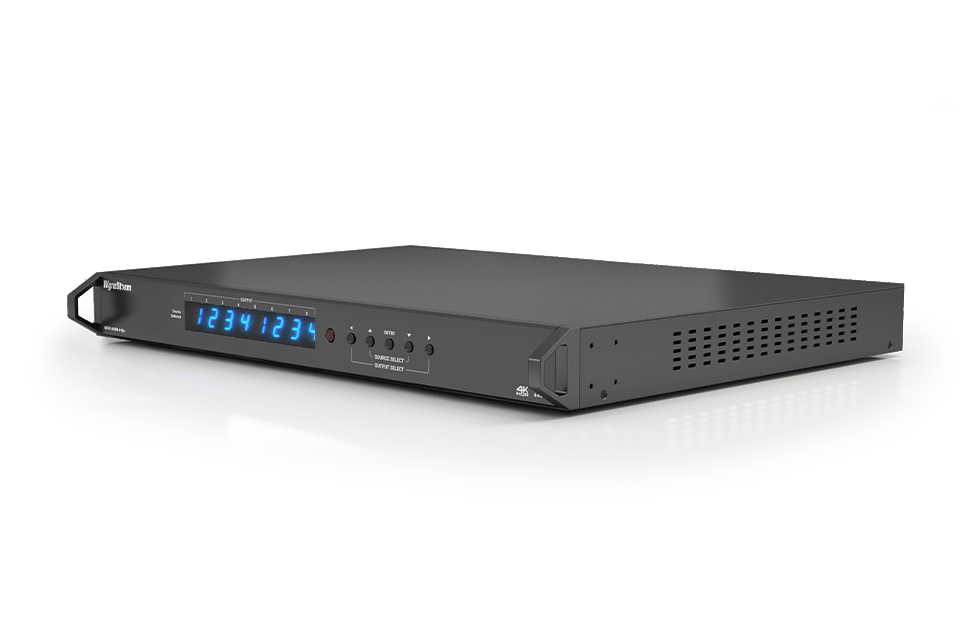

WyreStorm MXV 4K HDR 4:4:4 60Hz HDBaseT 4x8 (2xHDMI) Matrix Switch (4K 35m/1080p 70m)

2160p 4:4:4 60 - HDMI 2.0 MAXED OUT!

Bringing our lossless compression technology from the flagship H2XC matrix platform, the MXV 4x8 can handle both current & future video content technologies up to 4K/60 4:4:4 and high framerate HDR. The highest possible bandwidth that currently exists according to the HDMI 2.0 specification can be sent to its 6 HDBaseT zones using the latest in lossless compression technology.

DE-EMBEDDED AUDIO

With audio functionality to match its video capability, the MXV 4x8 has the ability to extract audio signals from either source devices or from the output, following the zone. Having S/PDIF connectivity means having the flexibility to send multi-channel 5.1 audio to local AVR's or downmix to stereo using the EXP-CON-DAC-D.

CEC TRIGGERING

Working automatically on signal presence or triggered via the API, the MXV 4x8 can send power trigger commands to all compatible connected screens or projectors meaning an integrated autonomous control solution.

A/V MUTE FUNCTION

Certain applications in the residential, education and commercial markets don’t always require a source to be routed through to an output. The MXV 4x8 makes it possible to “mute” the video output as well as the audio, meaning that the HDMI signals to the zones can be independently switched off via the API.

FEATURES

Use with RXV-35-4K for 35m/115ft transmission of 2160p 4:4:4/60

• 4K HDR HDBaseT 4x8 (2xHDMI) Matrix Switch, supporting:
• Content up to 4K/60 4:4:4 & RGB 8-bit
• The latest HDR standards, including 60Hz HDR-10 & HLG and Dolby Vision™ at 30Hz
• HDCP 2.2 encryption technology ensuring compatibility with the latest 4K UHD content and sources
• HD Multichannel audio up to DTS:X and Dolby Atmos™ to all outputs
• Proprietary compression algorithm enables 60Hz 4K UHD content (4:4:4 or HDR) to be sent over HDBaseT to 35m/115ft
• HDMI Inputs and HDMI outputs support bandwidths of up to 18Gbps
• Compatible with DVI-I and DP++ v1.3 signals from compatible devices
• 8 Assignable audio outputs allow audio to be independently de-embedded from sources or outputs via Toslink optical
• A/V Mute mode allows the routing of a signal to an output to be deactivated
• API controlled standby mode allows the matrix to enter a low power state when not in use, cutting power consumption by up to 34%
• SmartEDID™ feature also dynamically detects display/source capabilities and automatically outputs the highest possible resolution
• Additional EDID management through DIP switches for global setting or via WebUI for independent management of EDID per source
• Embedded WyreStorm WebUI enables simple source switching and installer set-up & configuration
• WebUI includes full EDID management to read, copy, store or import EDID from connected devices
• Assign a different EDID to each connected source devices
• Flexible control options – front panel buttons, infrared remote control, local IR, RS-232, Telnet or WebUI
• 3.5mm jack input for receiving local IR commands out of line-of-sight
• Simple switching matrix remote control included, which can be learned into a universal remote handset to allow the control of multiple devices from one handset
• IR learning function allows source switching in a zone to be triggered by an IR command other than the default
• Option for end-user WebUI switching interface
• Compact 1U chassis with adjustable depth rack mounting brackets included
• US, UK, EU & AU Power cables included
• Can be combined with WyreStorm EXP-CON-DAC-D digital audio converter to downmix Dolby Digital 5.1 content to mix stereo and surround sound zones
• Capable of transmitting content to 50m/164ft using WyreStorm HAOC range of hybrid optical HDMI cables
