Q Acoustics E120 Bluetooth DAB+/FM Installed Hi-Fi

Q Acoustics E120

This single-room, zero-clutter installed wireless audio system delivers superior and immersive audio in any room in the home or garden office, allowing users to wirelessly stream music from any compatible device, listen to radio broadcast and use for TV sound.

Heritage

Drawing on the company’s rich audio expertise, the E120 continues Q Acoustics’ exemplary credentials of designing class-leading, award-winning loudspeakers and wireless music systems. Pair the convenient wall-mounting E120 with Q Acoustics’ range of discreet in-ceiling or in-wall speakers and homeowners can experience a zero clutter, wireless home audio system. Whether listening to favourite music playlists or watching movies on the TV, the E120 is powerful enough to fill any room with dynamic, immersive and superior stereo audio. This system really is the perfect case of hearing but not seeing.

Wireless streaming and radio

Once installed into the living space wall (all cabling is supplied) and connected to chosen speakers, users can wirelessly stream music from popular music services, via Bluetooth® , from compatible devices such as smartphones, tablets, laptops and DAPs. Support for Bluetooth 5.0 provides greater range and a more stable wireless connection when streaming. Radio fans can enjoy broadcasts over DAB+ or FM with up to five presets configurable to access favourite stations with a single button touch.

Enhance the sound on your TV

With digital and analogue connections on hand, the E120 enables connection to a TV to enhance the audio, delivering a more immersive and dynamic television and movie watching experience. In addition, a rear analogue audio output can be configured to plug into a subwoofer for extra low-end bass sounds, an external power amplifier or even another E120 system.

Suitable for kitchens and bathrooms

Boasting an IP54-rating enables the system to be installed into bathrooms and kitchens where humidity and the ingress of water is possible. Using the supplied splash proof remote control (or control via the app/device they are using), homeowners can listen to their favourite music and radio stations while relaxing in the bath or preparing an evening meal.

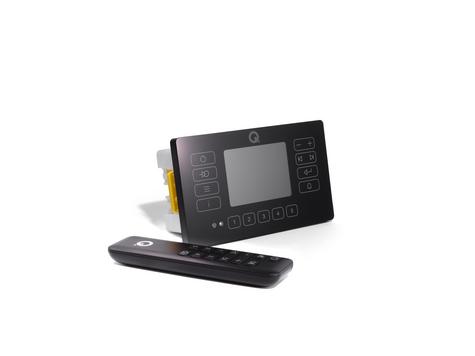

Touch control and colour display

To blend seamlessly into any interior, the main wall panel arrives in two classic colours: black and white. Boasting touch sensitive controls and a sharp 3.2” colour display that shows track, artist and album name, an internal light sensor can be configured to automatically set the display brightness. Owners can also manually set the on and dim levels, an important feature when using E120 in bedrooms to avoid background light during sleeping hours. The E120 also features an alarm function.

Flexible speaker options

Powered by a high-quality class D stereo amplifier, the E120 serves up 2 x 25W of power at 6ohms - optimised for Q Acoustics’ in-ceiling and in-wall speakers. Furthermore, owners can connect any pair of passive speakers, including cabinet designs between 6 - 8 ohms. The speaker outputs can be configured as stereo or dual mono (both output left and right combined) by setting a small switch, while a pair of speakers can be wired in series on each output to support even distribution of sound in larger rooms.

E120 with Q Acoustics in-ceiling and in-wall speaker recommended combinations:

Q Acoustics E120 and a stereo pair of Qi65CB in-ceiling speakers for most indoor applications.

Q Acoustics E120 and a stereo pair of Qi65C Professional in-ceiling speakers for most indoor applications.

Q Acoustics E120 and stereo pair of Qi65CW Weatherproof 6.5-inch in-ceiling speakers for showers, bathrooms and verandas.

Q Acoustics E120 and stereo pair of Qi65RP Performance 6.5-inch in-wall speakers for a discrete hi-fi.

Q Acoustics E120 & stereo pair of Qi65EW Weatherproof on-wall speakers for gardens and veranda (wall mount the E120 by the exit to the garden or veranda)

Specifications

Audio Sources:                  DAB / DAB+ / FM with RDS

Bluetooth:                          Version 5.0, A2DP

Analogue input:                Type: 3.5mm stereo

                                         Sensitivity: 350mV

                                          Max level: 1.5V

                                          Impedence: 10k ohm

Optical input:                     Type: mini TOSLINK

                                          Resolution: 16bit 48kHz

Speaker outputs:              Left & right, stereo or dual mono

Analogue output:             Type: 3.5mm stereo

                                         Modes: Fixed or variable

                                         Max level: 670mV

Amplifier:                          Type: Class D

                                          Continuous power: 2 x 25W @ 6ohm

                                          THD: 0.07% @ 1W / 0.2% @ rated power

                                          SNR: >75dB @ Rated power

                                          Frequency response: 20Hz - 20kHz +/- 1dB

IP ratings:                          E120 wall panel: IP54

                                          Splash proof remote: IP67

Control:                              Touch sensitive buttons

                                           Infra-red remote control

                                           Bluetooth AVRCP v1.6: Play, pause, skip, track, artist, album name

Menu languages:              English, German, Dutch, French, Danish, Spanish, Italian, Norwegian, Polish, Finnish

Alarms:                              x2 once, daily, weekdays, weekends

Power supply:                   Input: 100 - 240V AC 50/60 Hz

                                          Output : 22V DC 1.5amps

                                          Dimensions (HxWxD): 30mm x 50mm x 115mm

Power consumption:         Typical: 10W

                                          Standby: <1W

                                          Deep standby: <0.5W

Wall panel:                         Net weight: 0.251kg

                                           Dimensions (HxWxD): 91mm x 151mm x 33mm

Speaker cable supplied:    Gauge 19 AWG

                                           Lengths: 2 x 7m

Power cable supplied:       Gauge: 16 AWG

                                           Lengths: 5m

                                           Connectors: 5.5mm x 2.5mm DC male / 5.5mm x 2.5mm DC female

IN THE BOX

1x E120 control panel and system

2x 7M speaker cables

1x 5M power cable

1x remote control

1x waterproof remote control

1x Power Supply (with EU and UK mains leads)

1x Indoor DAB/FM antenna

1x 3m antenna extension cable

1x Backbox

1x quick start and installation manuals
