Anthem MDX 16

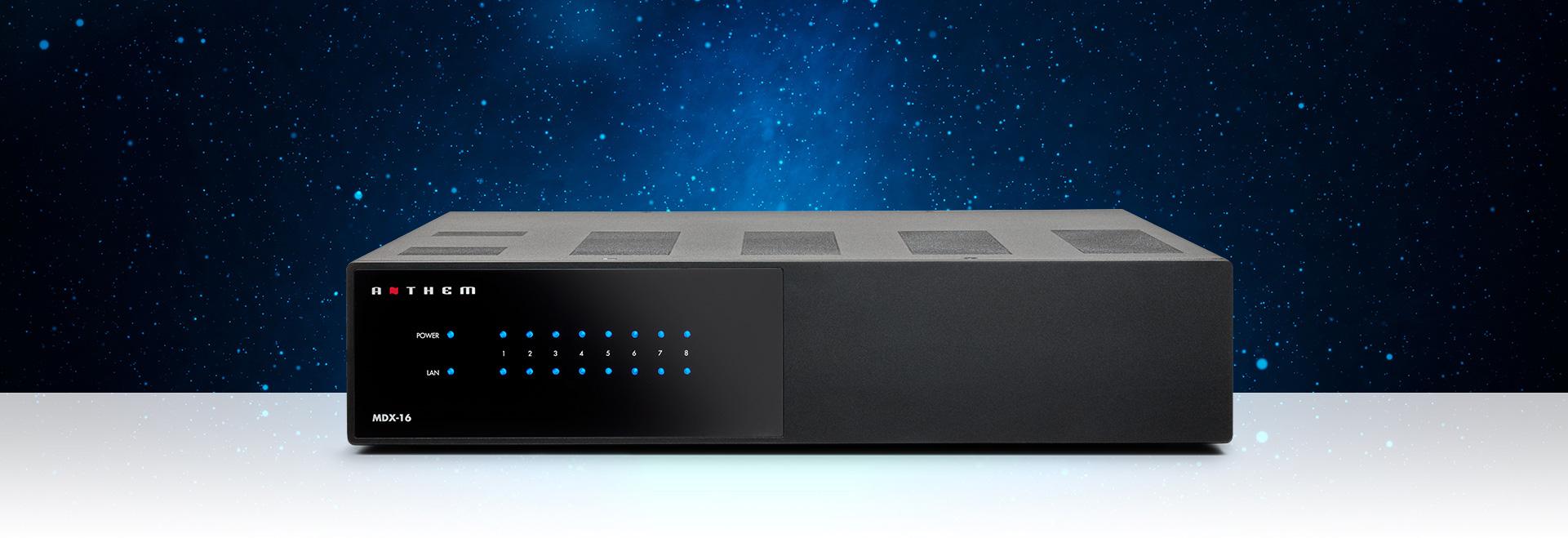

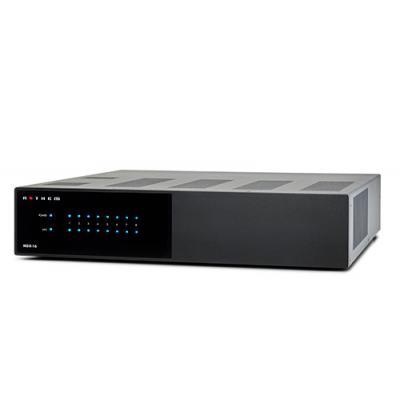

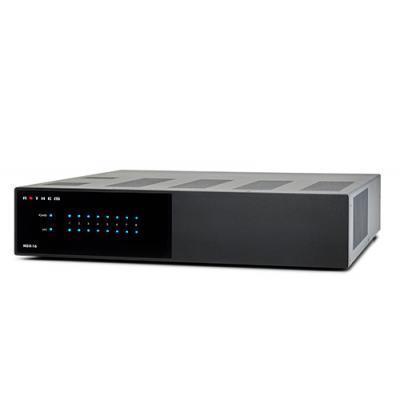

Anthem MDX-16 Matrix Amplifier
The Anthem MDX-16 Matrix Amplifier is a premium 16-channel, 8-zone multi-room distribution amplifier designed to deliver exceptional audio performance throughout the home. Combining powerful amplification, flexible analogue and digital audio matrixing and Anthem ARC Genesis Room Correction for every zone, the MDX-16 is an outstanding solution for professionally installed whole-home audio systems.
With 16 channels of amplification and up to 8 independent stereo zones, the MDX-16 is ideally suited to larger residential and commercial multi-room audio installations where sound quality, flexibility and reliable performance are essential.
16 Channels – Up to 8 Independent Audio Zones
The Anthem MDX-16 features 16 amplifier channels, allowing up to eight independent stereo zones to be powered from a single 2U amplifier.
This makes it ideal for distributing high-quality audio throughout areas such as:
- Living rooms
- Kitchens
- Dining rooms
- Bedrooms
- Home offices
- Cinema and entertainment rooms
- Garden rooms
- Outdoor entertainment areas
- Larger whole-home audio installations
Each zone can be individually configured, allowing different audio sources and settings to be used throughout the property.
Anthem ARC Genesis Room Correction
One of the standout features of the MDX-16 is Anthem Room Correction (ARC Genesis) for every zone.
ARC Genesis measures the acoustic characteristics of each individual room and optimises the audio performance to suit the listening environment.
This helps compensate for speaker positioning and room acoustics, delivering improved clarity, tighter bass and more accurate sound throughout the property.
Powerful & Flexible Amplification
The Anthem MDX-16 combines impressive power with the flexibility required for professional multi-room installations.
- 16 amplified channels
- Up to 8 independent stereo zones
- 60W per channel into 8 ohms
- 120W per channel into 4 ohms
- Up to 200W bridged into 8 ohms
- Advanced Load Monitoring (ALM)
Channels can be bridged when additional power is required, making the MDX-16 suitable for everything from discreet in-ceiling speakers to more demanding conventional loudspeakers.
Zone-Independent Subwoofer Control
The MDX-16 provides 8 dedicated subwoofer outputs, allowing a subwoofer to be incorporated independently into individual audio zones.
Bass management can be configured on a zone-by-zone basis, including crossover frequency, level, phase and polarity.
Combined with ARC Genesis, this provides exceptional control over speaker and subwoofer integration in each room.
Sophisticated Analogue & Digital Audio Matrix
The built-in audio matrix provides extensive flexibility when distributing audio sources throughout a property.
The MDX-16 includes:
- 8 x stereo analogue RCA inputs
- 2 x coaxial digital inputs
- 2 x optical digital inputs
- 8 x dedicated subwoofer outputs
- 2 x stereo analogue RCA outputs
- Optical digital matrix output
- Ethernet connectivity
- RS-232 control
The MDX-16 supports high-resolution PCM audio up to 24-bit/192kHz, making it suitable for premium music distribution systems.
Smart Home & Professional Integration
The Anthem MDX-16 has been designed specifically with professional AV and smart-home installation in mind.
A dedicated web-based user interface provides straightforward system configuration, while IP and RS-232 control enable integration with leading home automation platforms.
Drivers are available for systems including Control4, Crestron, ELAN, RTI, Savant and URC.
Multiple MDX amplifiers can also be incorporated into larger installations, making the platform highly scalable for properties requiring more than eight audio zones.
Key Features
- Premium 16-channel matrix amplifier
- Up to 8 independent stereo zones
- 60W per channel into 8 ohms
- 120W per channel into 4 ohms
- Up to 200W bridged into 8 ohms
- Anthem ARC Genesis Room Correction for every zone
- Advanced Load Monitoring (ALM)
- Analogue and digital audio matrix
- 8 dedicated subwoofer outputs
- Independent bass management
- PCM audio up to 24-bit/192kHz
- 8 stereo RCA analogue inputs
- 2 coaxial digital inputs
- 2 optical digital inputs
- Ethernet connectivity
- RS-232 control
- Web-based configuration
- Compatible with leading home automation systems
- Multiple-unit scalability
- Rack-mountable 2U design
- Rack ears and feet included
Premium Whole-Home Audio
The Anthem MDX-16 Matrix Amplifier provides a powerful and flexible foundation for larger multi-room audio installations. With 16 amplified channels, up to 8 independent zones, ARC Genesis room correction and sophisticated source matrixing, it delivers premium audio performance throughout the home.
Whether powering discreet in-ceiling speakers, in-wall speakers or higher-performance conventional loudspeakers, the MDX-16 provides the power, control and installation flexibility expected from Anthem.
Buy the Anthem MDX-16 Matrix Amplifier from Mediacoms Direct – specialists in professional audio visual, multi-room audio and home cinema equipment.
Product Comparison
 |  | ||
|---|---|---|---|
MDX-16 |
MDX-8 |
||
| Zones (Channels) | 8 (16) | 4 (8) | |
| Audio Inputs | |||
| Stereo RCA Analog Input | 8 | 4 | |
| Coaxial RCA Digital input | 2 | 0 | |
| Toslink (Optical) Digital Input | 2 | 1 | |
| Audio Outputs | |||
| Mono RCA Analog Sub Output | 8 | 4 | |
| Stereo Speaker Level Output | 8 | 4 | |
| - Watts 8 ohms | 60W | 60W | |
| - Watts 4 ohms | 120W | 120W | |
| Stereo RCA Passthrough | 2 | 0 | |
| Toslink (Optical) Digital Output | 1 | 0 | |
| Control Connectivity | |||
| Ethernet (RJ-45) | 1 | 1 | |
| Micro USB | 1 | 1 | |
| Serial (RS-232) | 1 | 1 | |
| 3.5mm Trigger Jacks (In/Out) | 2 | 2 |
