8-port Managed 5-24V DC PDU

Price Match
£734.40
Enlarged image

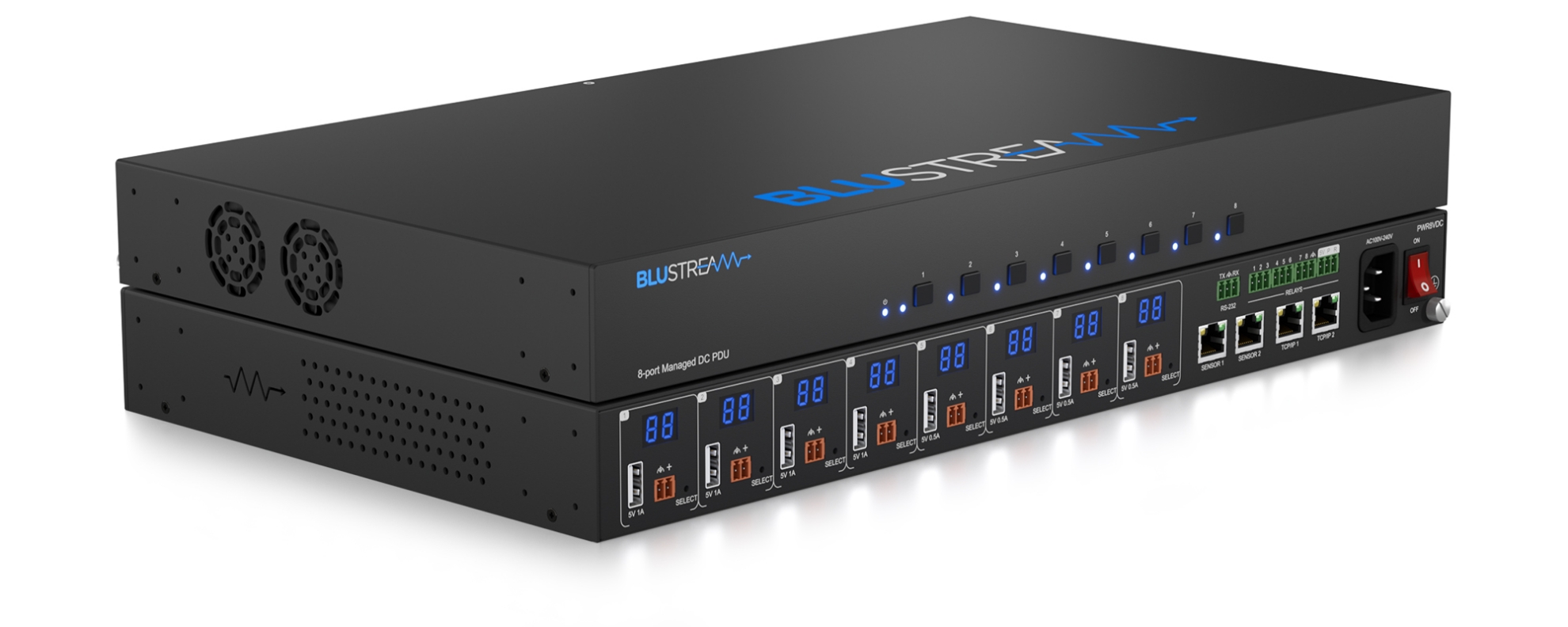

8-port Managed 5-24V DC PDU
Price Match
£734.40
in stock
8-port Managed 5-24V DC PDU Product code: PWR8VDC £734.40  Inc. VAT
Want it delivered by Wednesday, 10th Jun?
£9.99 Next working day  (11am cut-off, on most products we'll advise if not available)
£3.99 Standard delivery 2 - 4 working days (free on orders over £150)
Ask a Question
Please enter your details and we will get back to you.
Description
Technical Specification
Delivery

The PWR8VDC is an outlet-level metered and switched smart PDU with a single IEC C14 power inlet and eight individually switched variable-voltage output outlets for powering low-consumption AV devices. TCP/IP and RS-232 control is supported alongside a redundant TCP/IP port, with full remote management available through the web-GUI.

  • 1x IEC C14 power inlet
  • 8x individually switched variable-voltage output outlets
  • TCP/IP and RS-232 control with redundant TCP/IP backup port
  • Front panel buttons for per-outlet control and a master mains switch
  • 8x relay connections and 2x sensor ports for third-party or BMS integration
  • Remote access and monitoring via web-GUI
Product Category
Power Management / 8-Way Smart PDU
Dimensions
437 x 245 x 44 mm (without connections); 437 x 252 x 44 mm (with connections)
Installation
1U rack height - rack ears included
Weight
5 kg (shipping)
Power Supply
Internal 110-250V AC
Ethernet Ports
2 x RJ45 female (TCP/IP), 2 x RJ45 female (Sensor)
Contents
1x PWR8VDC, 1x Serial cable - DB9 to 3 pin Phoenix connector, 4x 3 pin 3.5mm Phoenix connector, 1x 19" Rack Mounting kit, 4x Mounting feet, 1x Quick Reference Card, IEC Power Cable(s)
Operating Temperature
0C to 40C
Storage Temperature
-20C to 60C
