4x4 HDBaseT CSC AV Matrix (70m)

Price Match
£2370.00
Enlarged image
4x4 HDBaseT CSC AV Matrix (70m)
Price Match
£2370.00
in stock
4x4 HDBaseT CSC AV Matrix (70m) Product code: HMXL44ARC-KIT £2370.00  Inc. VAT
Want it delivered by Wednesday, 10th Jun?
£9.99 Next working day  (11am cut-off, on most products we'll advise if not available)
£3.99 Standard delivery 2 - 4 working days (free on orders over £150)
Ask a Question
Please enter your details and we will get back to you.
Description
Technical Specification
Delivery

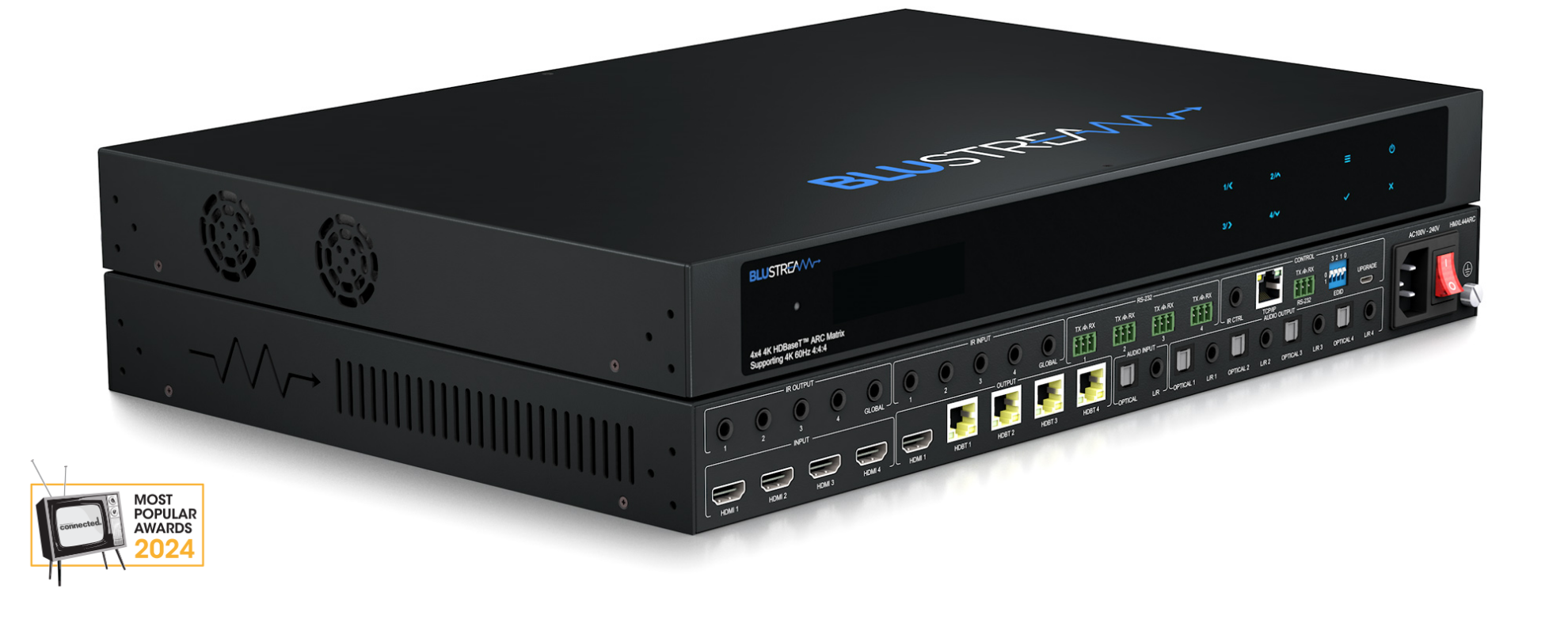

The HMXL44ARC-KIT is Blustream’s Essential 4x4 HDBaseT™ Matrix, delivering an exceptional combination of performance and value for custom AV installations. Operating as an HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 matrix with CSC technology, it distributes content over a single CAT cable to four HDBaseT outputs at distances of up to 70m at 1080p.

Advanced capabilities include simultaneous HDBaseT™ and HDMI on output 1, smart video scaling on HDBaseT outputs, and an independent 14x4 audio matrix with full Audio Return Channel (ARC) support. RS-232 and IR pass-through enable seamless integration with leading third-party control platforms, and a built-in web interface simplifies setup and ongoing management. Key features include:

  • 4x4 HDMI 2.0 4K 60Hz 4:4:4 matrix with HDCP 2.2
  • CSC technology for cross-resolution display environments
  • HDBaseT™ outputs up to 70m (1080p) over a single CAT cable
  • Simultaneous HDBaseT™ and HDMI on output 1
  • Smart video scaling on HDBaseT™ outputs
  • Independent 14x4 audio matrix with Audio Return Channel (ARC)
  • Built-in web browser interface for configuration and control
  • RS-232 and IR pass-through for third-party control integration
Product Category
HDBaseT Matrix / 4x4
Dimensions
436 x 300 x 44 mm (1U, without feet)
Installation
1U rack, rack ears included
Power Supply
Internal 100-240V AC
Ethernet Ports
1 x RJ45 (TCP/IP)
Contents
1x HMXL44ARC, 4x RX70CS, 1x Rack Mounting Kit, 1x Remote Control, 4x IR Emitters, 5x IR Receivers, 1x Serial Cable (DB9 to 3-pin Phoenix), 1x IR Control Cable (3.5mm-3.5mm), IEC Power Cable(s), 1x Quick Reference Guide
Operating Temperature
-5C to +55C
Storage Temperature
-25C to +70C
Optical Audio
1 x Optical in / 4 x Optical out
HDMI ARC
Yes (HDMI or Optical ARC)
