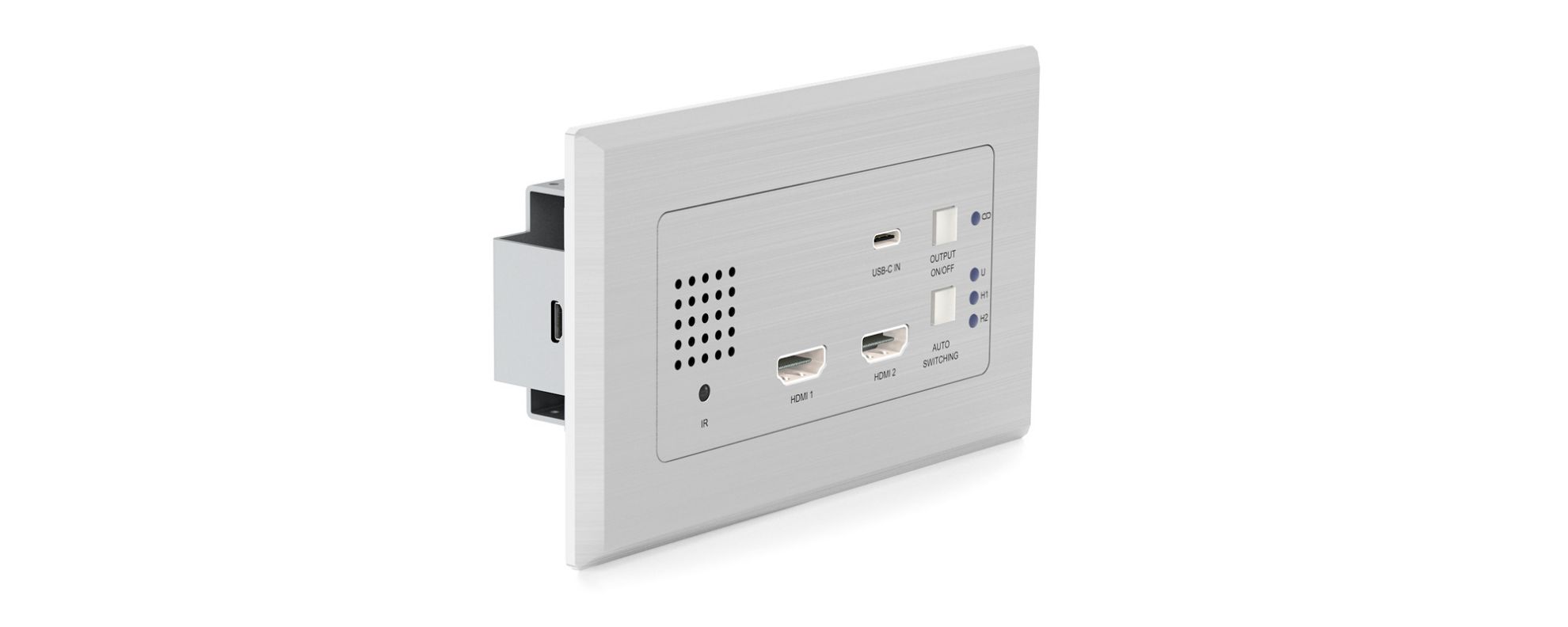

The HEX31WP-TX is a wall plate HDBaseT™ transmitter featuring both HDMI and USB-C inputs, offering a clean and discreet multi-format 4K switching solution at the source point. It delivers signals to compatible receivers or matrix switchers at distances of up to 70m at 1080p resolution, or 40m when operating at 4K 60Hz 4:2:0.

Designed for flexible deployment, the unit supports both manual and automatic source selection, making it equally suited to boardrooms, classrooms and hospitality environments. Key features include:

  • HDMI and USB-C inputs with 4K multi-format switching
  • 70m range at 1080p; 40m range at 4K 60Hz 4:2:0
  • Manual and automated input source selection
  • Display on/off control via CEC
  • RS-232 and IR control pass-through via compatible HDBaseT™ receivers or matrix
  • Compatible with all Blustream HDBaseT™ receivers and matrix solutions
  • Fits UK and European standard back boxes
  • Powered locally or via compatible Blustream HDBaseT™ products (PoC)
Product Category
HDBaseT Extenders / Wall Plate Transmitters
Colour
Silver
Dimensions
Casing: 136 x 76 x 44 mm (without faceplate); Casing: 146 x 86 x 44 mm (with faceplate); Faceplate: 146 x 86 x 6 mm
Installation
UK and EU backbox compatible (magnetic faceplate)
Weight
2.8 kg (shipping)
Power Supply
12V/1A DC
Contents
1x HEX31WP-TX, 1x 12V/1A DC Power Supply, 1x Magnetic Faceplate, 1x RS-232 Control Cable, 1x Quick Reference Guide
Operating Temperature
-5C to +55C
Storage Temperature
-25C to +70C
HDMI ARC
No
Product Category
HDBaseT Extenders / Wall Plate Transmitters
Colour
Black
Dimensions
Casing: 136 x 76 x 44 mm (without faceplate); Casing: 146 x 86 x 44 mm (with faceplate); Faceplate: 146 x 86 x 6 mm
Installation
UK and EU backbox compatible (magnetic faceplate)
Weight
2.8 kg (shipping)
Power Supply
12V/1A DC
Contents
1x HEX31WPB-TX, 1x 12V/1A DC Power Supply, 1x Magnetic Faceplate, 1x RS-232 Control Cable, 1x Quick Reference Guide
Operating Temperature
-5C to +55C
Storage Temperature
-25C to +70C
HDMI ARC
No
Product Category
HDBaseT Extenders / Wall Plate Transmitters
Colour
White Satin
Dimensions
Casing: 136 x 76 x 44 mm (without faceplate); Casing: 146 x 86 x 44 mm (with faceplate); Faceplate: 146 x 86 x 6 mm
Installation
UK and EU backbox compatible (magnetic faceplate)
Weight
2.8 kg (shipping)
Power Supply
12V/1A DC
Contents
1x HEX31WPW-TX, 1x 12V/1A DC Power Supply, 1x Magnetic Faceplate, 1x RS-232 Control Cable, 1x Quick Reference Guide
Operating Temperature
-5C to +55C
Storage Temperature
-25C to +70C
HDMI ARC
No
